SKU: 560SPB5-MB

560X5SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

560X5SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$345.00 ex VAT
$345.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $231.09
5+ $218.11
9+ $215.51
19+ $212.92
49+ $210.32
74+ $207.72
99+ $194.74
199+ $192.14
249+ $189.55
499+ $186.95
999+ $181.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
567mm
Pitch Diameter:
560mm
Max Bore:
100mm

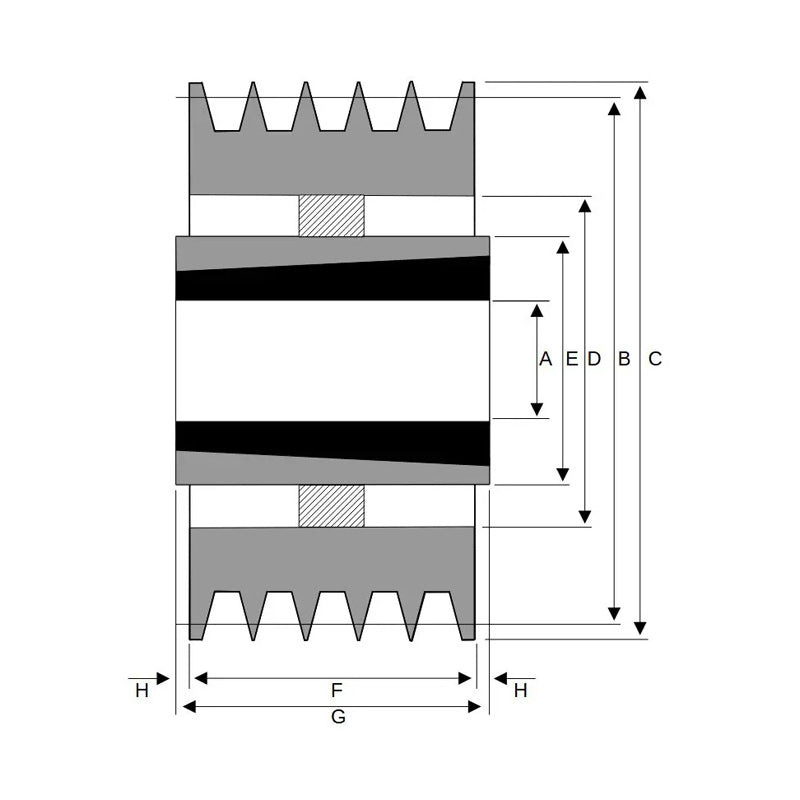

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4040+tapered+locking+bush">4040 Click Here</a>
Pitch Diameter B 560mm
Overall Outer Diameter C 567mm
Max Bore A 100mm
Overall Sheave Depth F 101mm
Bush Seat Length G 102mm
Inner Recess Length H 1mm
