SKU: 560SPB6-MB

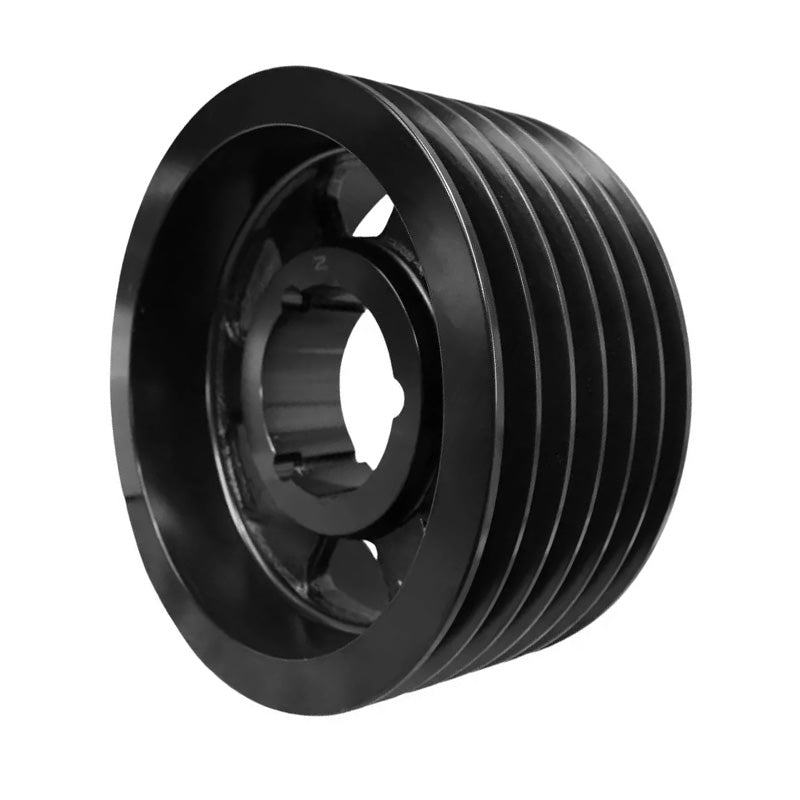

560X6SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

560X6SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$394.06 ex VAT
$394.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $263.96
5+ $249.13
9+ $246.16
19+ $243.20
49+ $240.23
74+ $237.27
99+ $222.44
199+ $219.47
249+ $216.50
499+ $213.54
999+ $207.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
567.6mm
Pitch Diameter:
560mm
Max Bore:
100mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 560mm
Overall Outer Diameter C 567.6mm
Max Bore A 100mm
Outer Hub Diameter E 210mm
Overall Sheave Depth F 120mm
Bush Seat Length G 65mm
Inner Recess Diameter D 517mm
Inner Recess Length H 27.5mm
