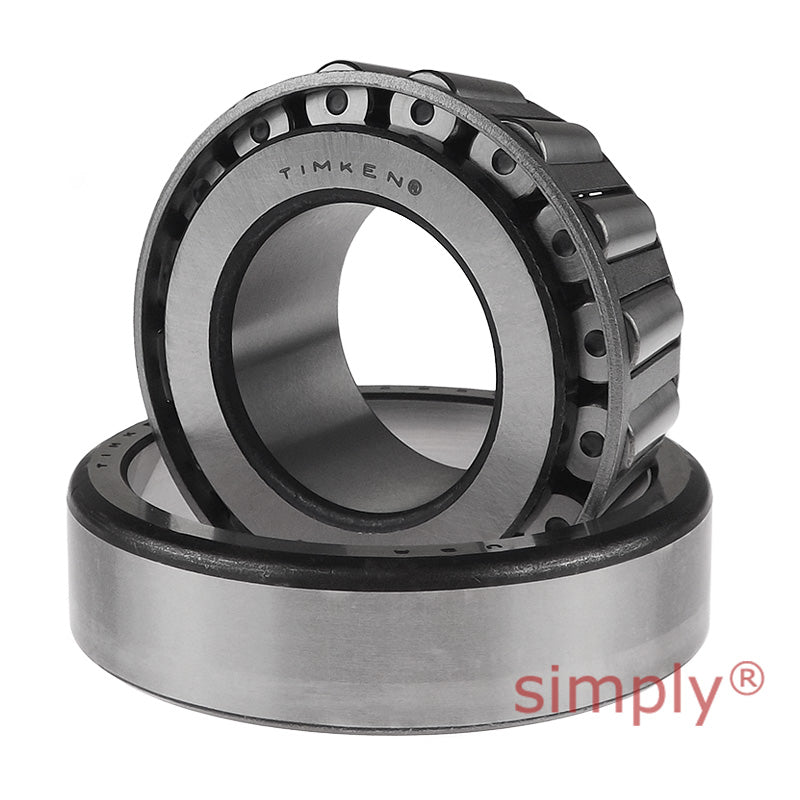

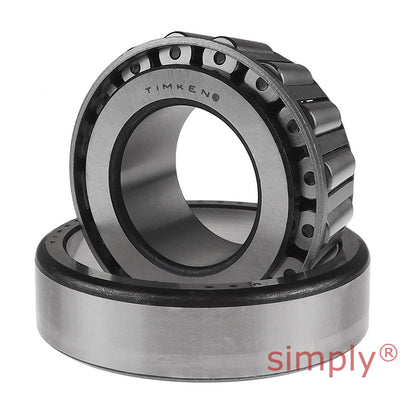

• Timken 566X/563 TS Single-Row Taper Roller Bearing 2.75x5x1.4375 inch
  • Timken
1 2

SKU: 566X/563-TIM

Timken 566X/563 TS Single-Row Taper Roller Bearing 2.75x5x1.4375 inch

Timken 566X/563 TS Single-Row Taper Roller Bearing 2.75x5x1.4375 inch
$356.18 ex VAT
$356.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $238.59
20+ $225.18
30+ $222.50
40+ $219.82
50+ $217.14
75+ $214.46
100+ $201.06
200+ $198.38
250+ $195.69
500+ $193.01
1000+ $187.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:
Timken - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Outside Diameter:
127mm = 5 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Technical
d 69.85mm = 2.75 inch
D 127mm = 5 inch
T 36.512mm = 1.4375 inch
Dynamic (1) C1 182000N
Factors (5) e 0.36
Factors (5) Y 1.65
Dynamic (2) C90 47100N
Dynamic (2) Ca90 29400N
Factors (5) K 1.61
Static C0 262000N
Bearing B 36.17mm = 1.424 inch
Bearing C 28.575mm = 1.125 inch
Bearing a(3) -8.1mm = -0.32 inch
Shaft max shaft fillet radius R(4) 6.8mm = 0.27 inch
Shaft backing shoulder diameter da 78mm = 3.07 inch
Shaft backing shoulder diameter db 91mm = 3.58 inch
Housing backing shoulder diameter r(4) 3.3mm = 0.13 inch
Housing backing shoulder diameter Da 120mm = 4.72 inch
Housing backing shoulder diameter Db 112mm = 4.41 inch
Cage Aa 3.2mm = 0.13 inch
Cage Ab 1.8mm = 0.07 inch
G1 101
G2 24
Cg 0.1167
