SKU: 569-222

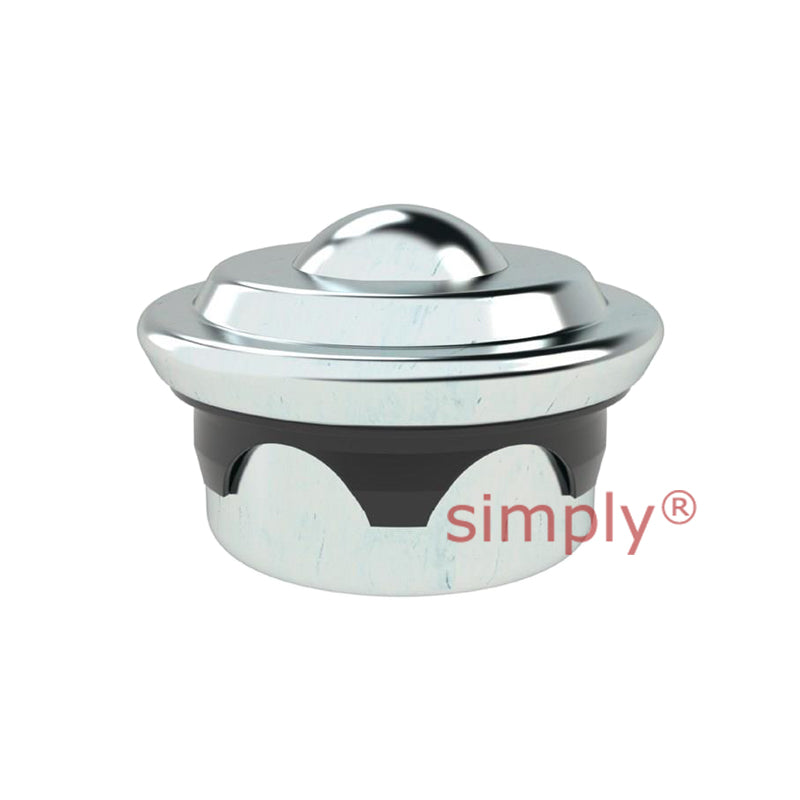

High-Performance Light Duty Ball Transfer Unit with 22.22mm Steel Ball - Load Capacity 50kg - Allow 2-3 Days
- Regular price
- $11.48 ex VAT
- Sale price
- $11.48
- Regular price
-
Not in stock
Quantity Price Breaks
4
$10.22
9
$9.64
14
$9.53
19
$9.41
49
$9.30
74
$9.18
99
$8.61
199
$8.50
249
$8.38
499
$8.27
999
$8.04
SKU:
569-222
High-Performance Light Duty Ball Transfer Unit with 22.22mm Steel Ball - Load Capacity 50kg - Allow 2-3 Days
- Regular price
- $11.48 ex VAT
- Sale price
- $11.48
- Regular price
-
Description
V44AJBMM9L
This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.
Technical

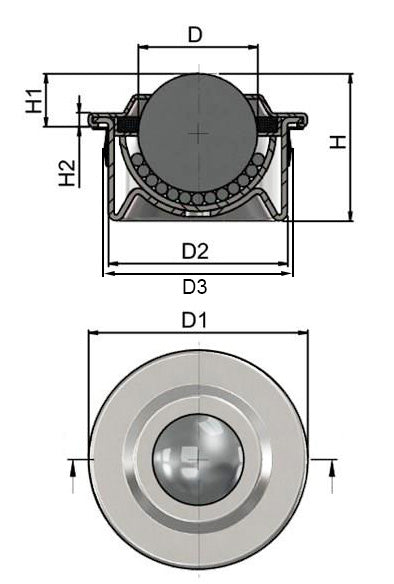

| --- | = | Dimensions |
| D | = | 22.22mm |
| D1 | = | 46mm |
| D2 | = | 36mm |
| D3 (With Clip) | = | 37/37.5mm |
| H | = | 30mm |
| H1 | = | 10mm |
| H2 | = | 3mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 50 kg |
| Weight | = | 0.13 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
