SKU: 569-230

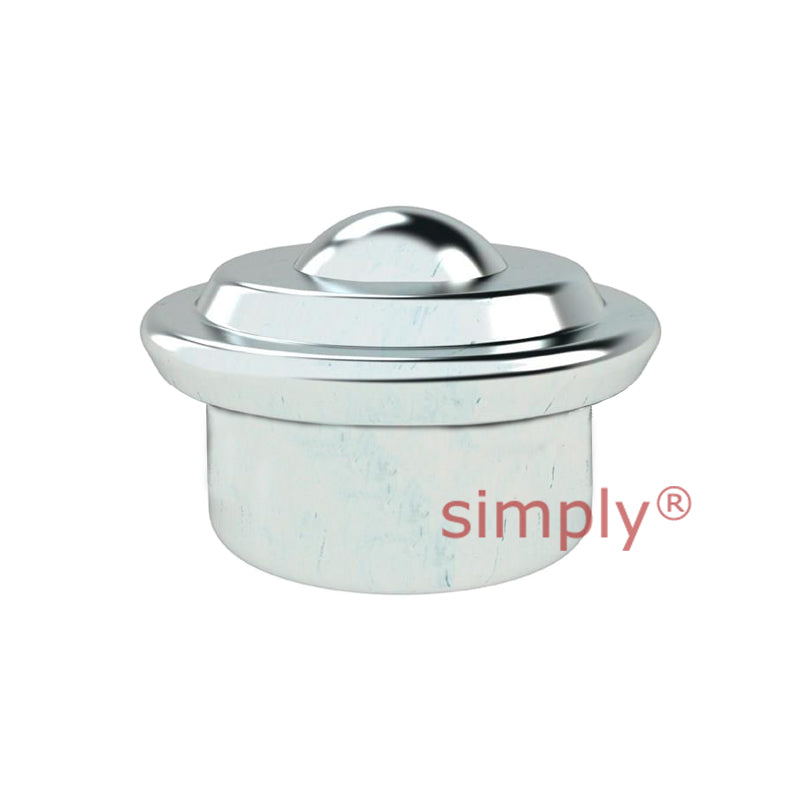

High-Performance Light Duty Ball Transfer Unit with 30.1mm Steel Ball - Load Capacity 100kg - Allow 2-3 Days
- Regular price
- $19.48 ex VAT
- Sale price
- $19.48
- Regular price
-
Quantity Price Breaks
High-Performance Light Duty Ball Transfer Unit with 30.1mm Steel Ball - Load Capacity 100kg - Allow 2-3 Days
- Regular price
- $19.48 ex VAT
- Sale price
- $19.48
- Regular price
-
Description
Push Fit Light-Duty Steel Ball Transfer Unit: Often referred to as "Euro Style Ball Transfer Units" these ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated carbon steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads. These light-duty ball transfer units are ideal for less demanding conveying applications.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.

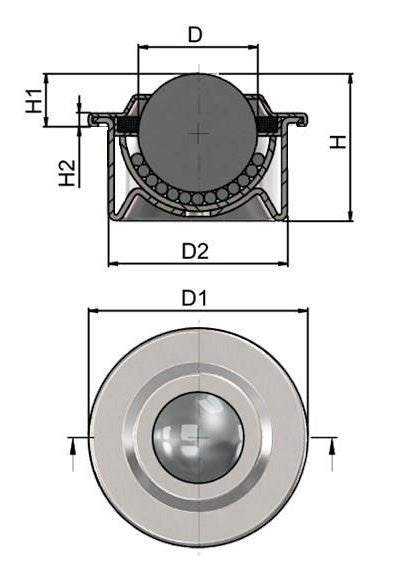

Technical
| --- | = | Dimensions |
| D | = | 30.1mm |
| D1 | = | 55mm |
| D2 | = | 45mm |
| H | = | 36mm |
| H1 | = | 15mm |
| H2 | = | 3mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 100 kg |
| Weight | = | 0.32 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
