SKU: 56x66x10_FKM_WPM_NAK

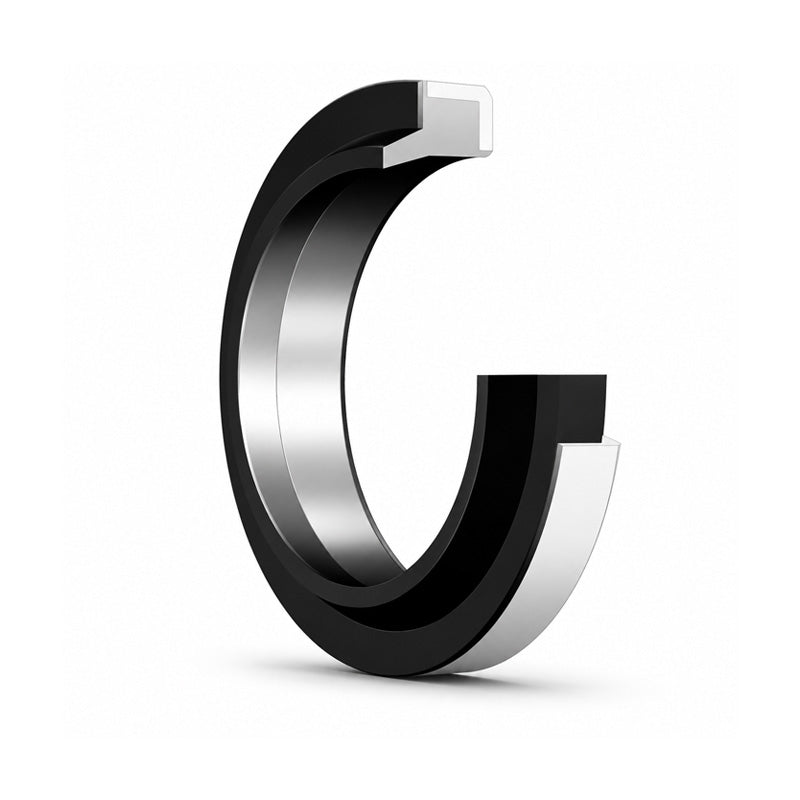

NAK 56x66x10mm WPM FKM Wiper Seal - Allow 7-10 Days
NAK 56x66x10mm WPM FKM Wiper Seal - Allow 7-10 Days
Out of stock
Share this product
Description
Description
NAK WPM Wiper Seals: WPM wiper seals are heavy-duty dust-exclusion seals designed to protect hydraulic and pneumatic systems from external contamination. This seal is particularly suitable for harsh environments and demanding operating conditions. The WPM wiper seal helps prolong the life of internal seals, reduce wear, and maintain system performance even under extensive use.
Benefits: Reliable, superior dust exclusion, excellent groove retention
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 56mm
- Outside Diameter:
- 66mm
- Length:
- 10mm
- Material:
- FKM
- Style:
- WPM
- Colour:
- Black
Technical
Technical
| d | 56mm |
|---|---|
| D | 66mm |
| L | 7mm |
| t | 7mm |
| h | 10mm |
| c | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H8 |
| Length Tolerance | 0.2mm |
| Running Speed v | 1 m/s |
| Temperature | -25 Deg C to +250 Deg C |
| Colour | Black |
