• High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
1 1

SKU: 570-304

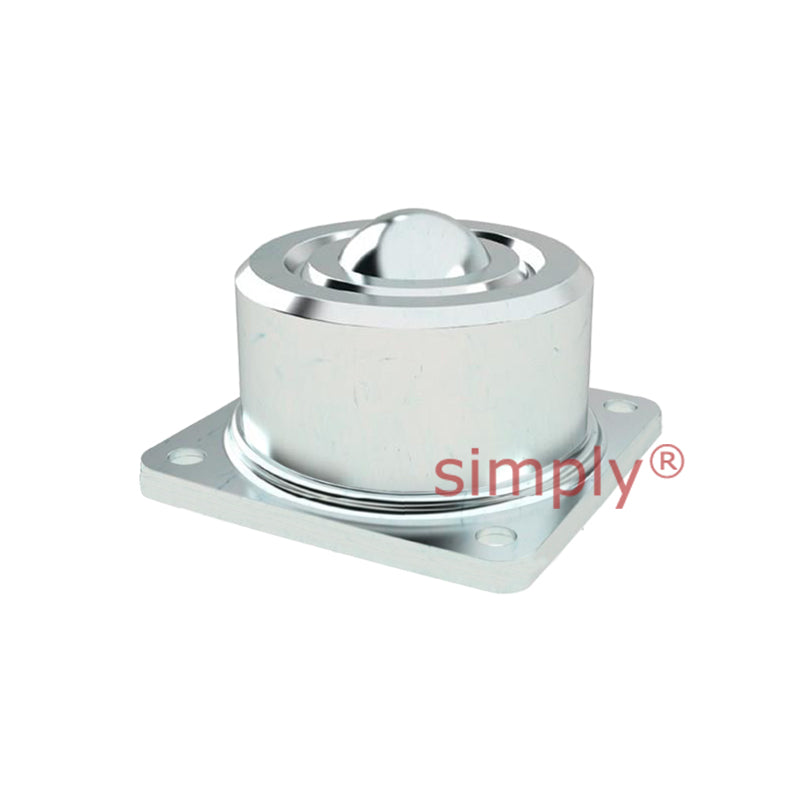

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
$168.62 ex VAT
$168.62 ex VAT
Sale Sold out

In stock

Price Break
4+ $110.74
9+ $104.52
14+ $103.27
19+ $102.03
49+ $100.78
74+ $99.54
99+ $93.32
199+ $92.07
249+ $90.83
499+ $89.59
999+ $87.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
38.1mm
Technical

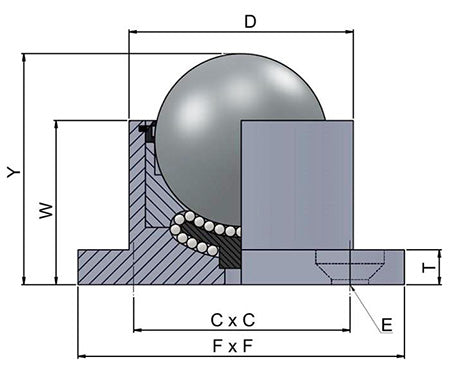

--- Dimensions
Ball Diameter 38.1mm
Y 61.5mm
W 48.8mm
D 60.3mm
FXF 76.2mm
CXC 57.9mm
T 12.7mm
E 4x7.1mm
--- Loads and Speeds
Load Capacity 1000 kg
Load capacity 2240 lbs
Weight 1.26 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
