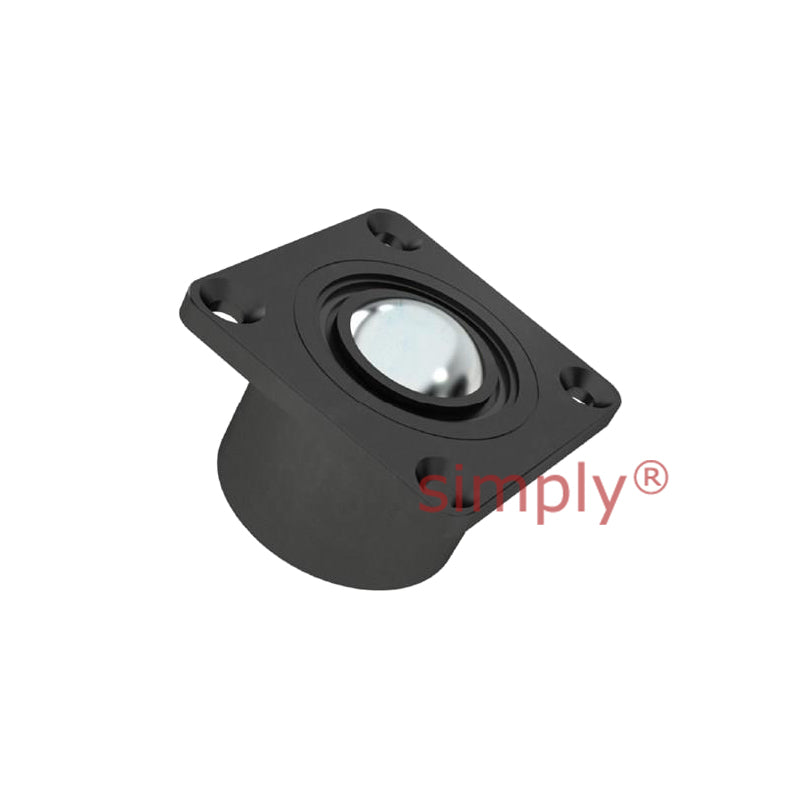

• High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
1 1

SKU: 570-403

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
$115.26 ex VAT
$115.26 ex VAT
Sale Sold out

In stock

Price Break
4+ $75.69
9+ $71.44
14+ $70.59
19+ $69.74
49+ $68.89
74+ $68.04
99+ $63.79
199+ $62.94
249+ $62.09
499+ $61.24
999+ $59.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical

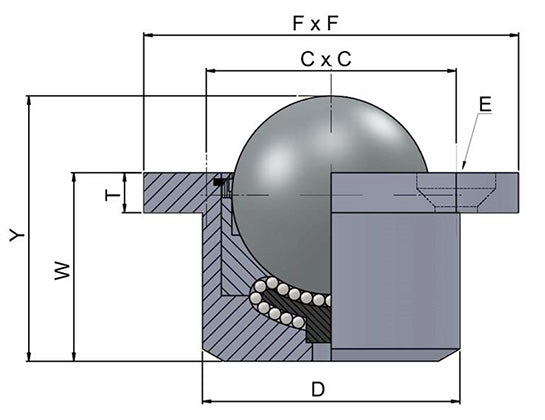

--- Dimensions
Ball Diameter 25.4mm
Y mm 44.5mm
W mm 38.2mm
D mm 50.8mm
FXF mm 76.2mm
CXC mm 57.9mm
T mm 6.4mm
E(Dia) mm 4x7.1mm
--- Loads and Speeds
Load Capacity 327 kg
Load capacity Ibs 720 lbs
Weight 0.7 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
Mounting Type Square
