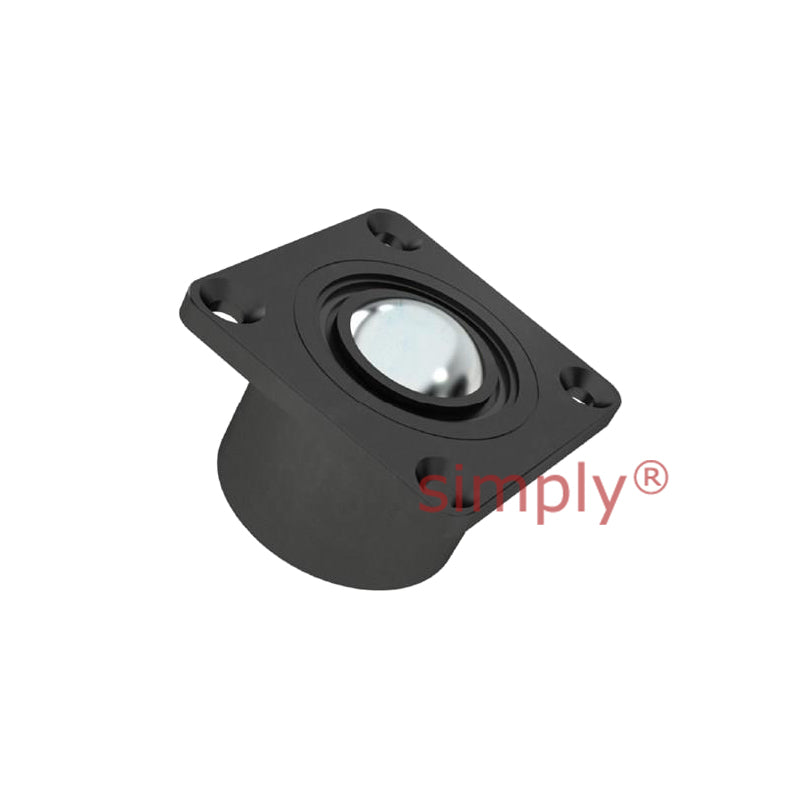

• High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1364.12kg - Allow 2-3 Days
1 1

SKU: 570-405A

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1364.12kg - Allow 2-3 Days

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Stainless Steel Ball - Load Capacity 1364.12kg - Allow 2-3 Days
$571.78 ex VAT
$571.78 ex VAT
Sale Sold out

In stock

Price Break
4+ $375.48
9+ $354.39
14+ $350.17
19+ $345.95
49+ $341.73
74+ $337.51
99+ $316.42
199+ $312.20
249+ $307.98
499+ $303.76
999+ $295.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
Y mm 98.4mm
W mm 84.2mm
D mm 110mm
FXF mm 127mm
CXC mm 101.6mm
T mm 19.1mm
E(Dia) mm 4x10.3mm
--- Loads and Speeds
Load Capacity 1364.12 kg
Load capacity Ibs 3006.96 lbs
Weight 6.32 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
Mounting Type Square
