• High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 7kg - Allow 2-3 Days
1 1

SKU: 570-501

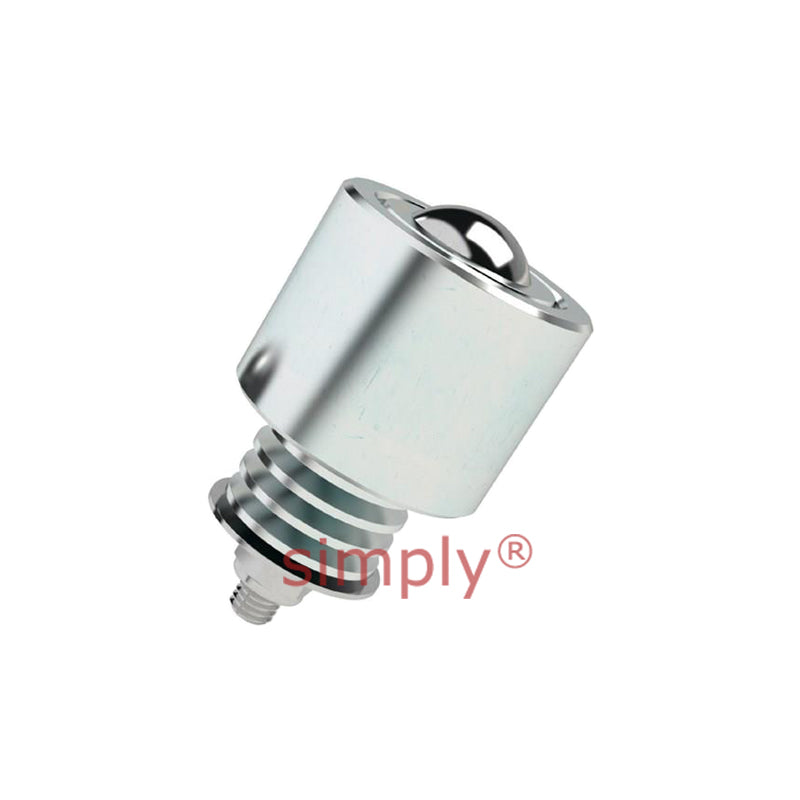

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 7kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 7kg - Allow 2-3 Days
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
4+ $37.01
9+ $34.93
14+ $34.51
19+ $34.10
49+ $33.68
74+ $33.26
99+ $31.19
199+ $30.77
249+ $30.35
499+ $29.94
999+ $29.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
12.7mm
Technical
--- Dimensions
Ball Diameter 12.7mm
D 20.6mm
R 20mm
X 32.2mm
Y 47mm
Z 15mm
Max Deflection 2mm
--- Loads and Speeds
Supports Load 7kg
Load to Max Deflection 32kg
Weight 0.06 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
