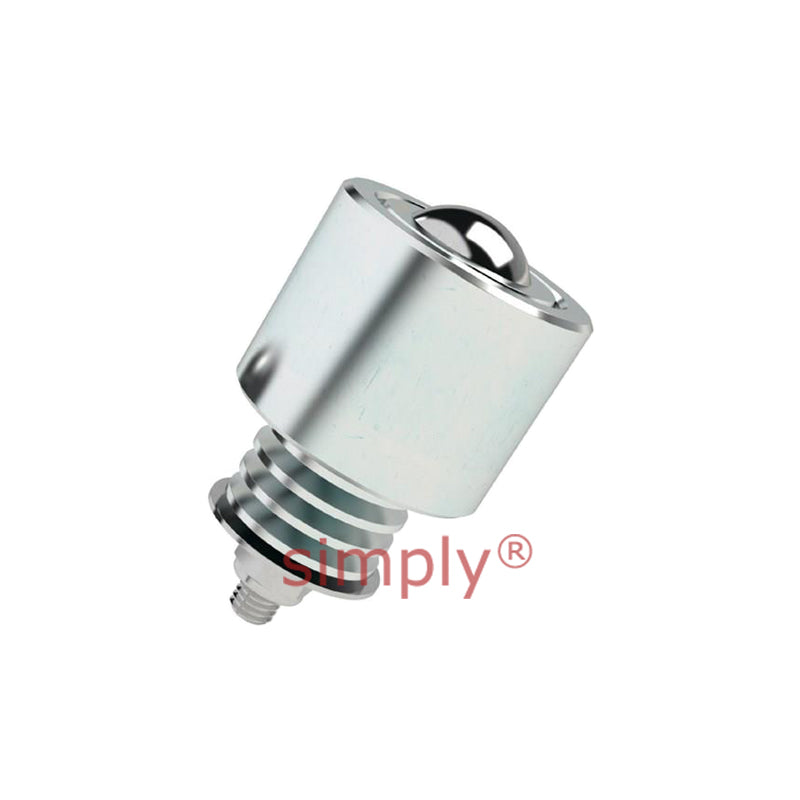

• High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days
1 1

SKU: 570-501A

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
4+ $38.69
9+ $36.51
14+ $36.08
19+ $35.65
49+ $35.21
74+ $34.78
99+ $32.60
199+ $32.17
249+ $31.73
499+ $31.30
999+ $30.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
12.7mm
Technical
--- Dimensions
Ball Diameter 12.7mm
D 20.6mm
R 20mm
X 32.2mm
Y 47mm
Z 15mm
Max Deflection 2mm
--- Loads and Speeds
Supports Load 7kg
Load to Max Deflection 32kg
Weight 0.06 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
