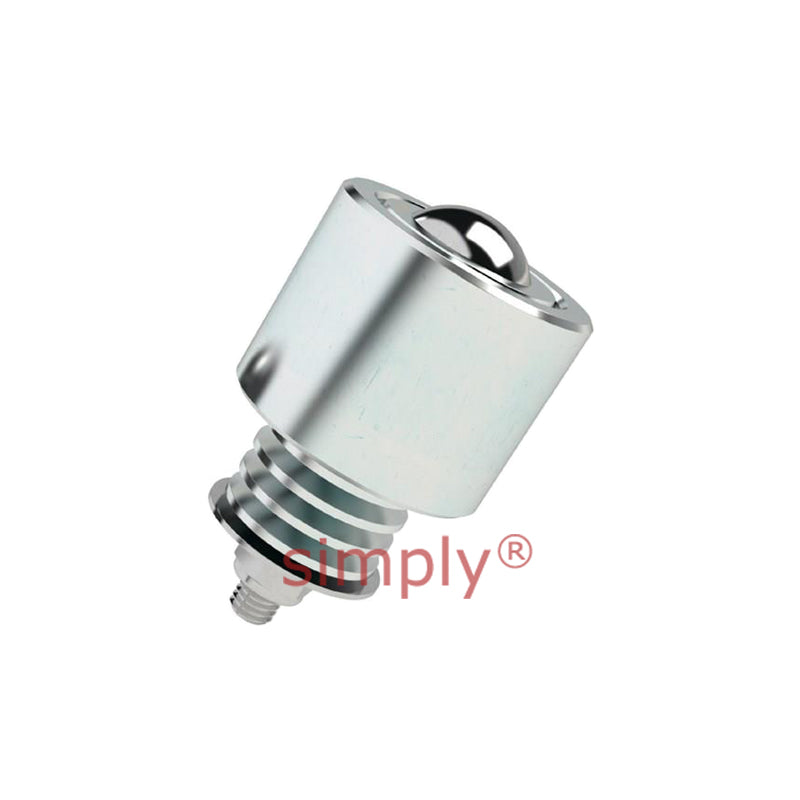

• High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 23kg - Allow 2-3 Days
1 1

SKU: 570-503

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 23kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 23kg - Allow 2-3 Days
$61.48 ex VAT
$61.48 ex VAT
Sale Sold out

In stock

Price Break
4+ $41.18
9+ $38.86
14+ $38.40
19+ $37.94
49+ $37.48
74+ $37.01
99+ $34.70
199+ $34.24
249+ $33.78
499+ $33.31
999+ $32.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
12.7mm
Technical
--- Dimensions
Ball Diameter 12.7mm
D 20.6mm
R 20mm
X 32.2mm
Y 47mm
Z 15mm
Max Deflection 2mm
--- Loads and Speeds
Supports Load 23kg
Load to Max Deflection 38kg
Weight 0.06 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
