SKU: 570-503A

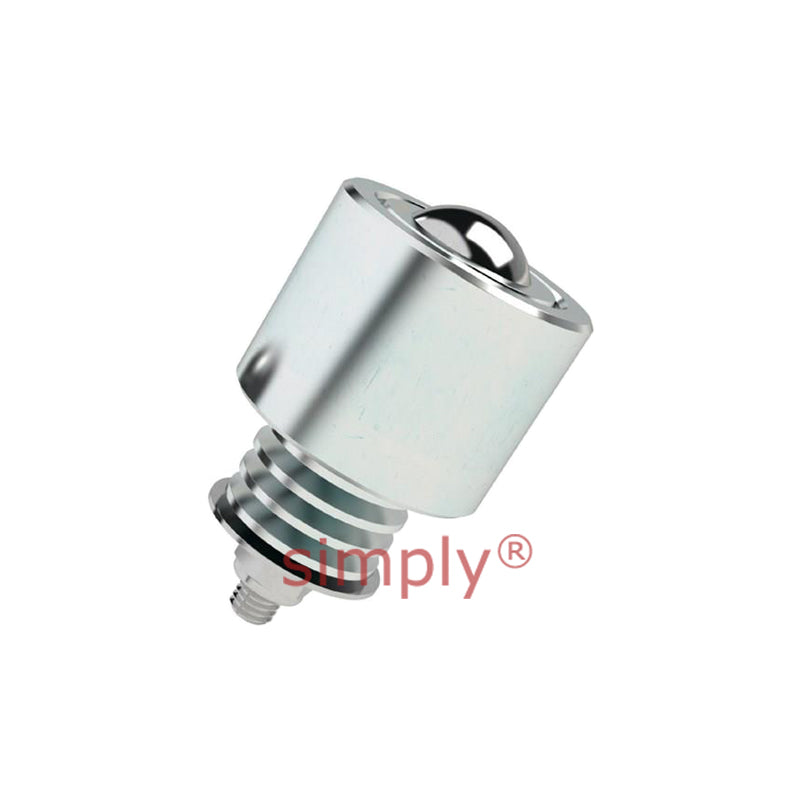

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 23kg - Allow 2-3 Days
- Regular price
- $60.99 ex VAT
- Sale price
- $60.99
- Regular price
-
Quantity Price Breaks
High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 23kg - Allow 2-3 Days
- Regular price
- $60.99 ex VAT
- Sale price
- $60.99
- Regular price
-
Description
External Spring-Loaded High-Capacity Stainless Steel Ball Transfer Units: Spring-loaded ball transfer units are specialised devices designed for multi-direction materials handling solutions. They consist of a large load-bearing stainless steel ball atop multiple smaller balls housed within a zinc-plated mild steel casing, complemented by an external spring mechanism. External spring-loaded ball transfer units offer low friction, and smooth operation, and are ideal for load balancing and environments with extreme temperatures (temperature range -50 deg C to +160 deg C). These units provide adjustable pre-load and maintain their load capacity regardless of orientation, with integral mounting points for easy installation. They are particularly suitable for heavy-duty applications, characterized by the lowest coefficient of friction and exceptionally smooth performance.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 12.7mm |
| D | = | 20.6mm |
| R | = | 20mm |
| X | = | 32.2mm |
| Y | = | 47mm |
| Z | = | 15mm |
| Max Deflection | = | 2mm |
| --- | = | Loads and Speeds |
| Supports Load | = | 23kg |
| Load to Max Deflection | = | 38kg |
| Weight | = | 0.06 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
