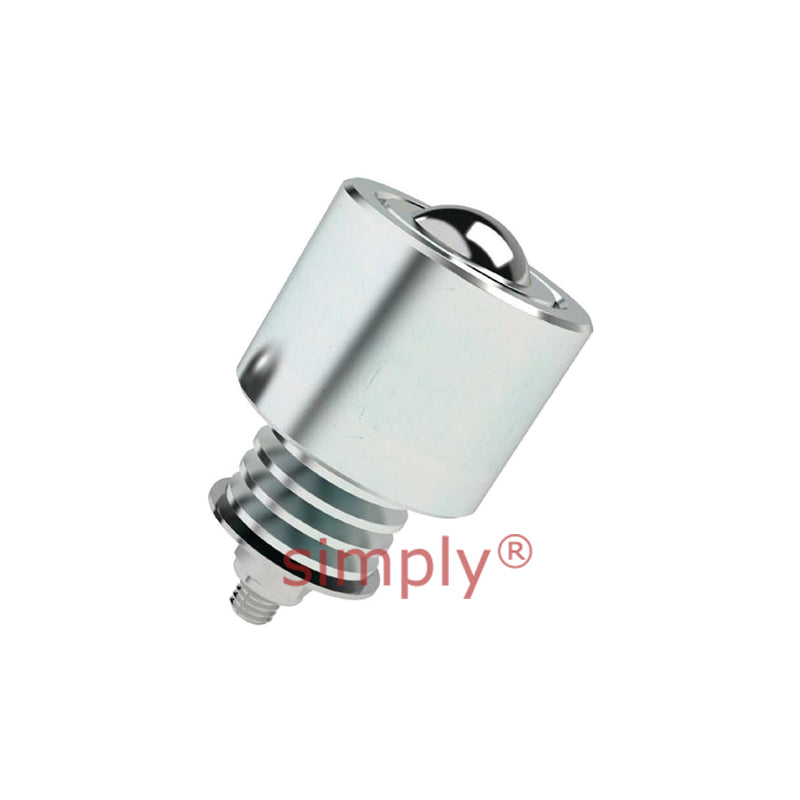

• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days
1 1

SKU: 570-504A

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 7kg - Allow 2-3 Days
$132.34 ex VAT
$132.34 ex VAT
Sale Sold out

In stock

Price Break
4+ $86.91
9+ $82.03
14+ $81.05
19+ $80.07
49+ $79.10
74+ $78.12
99+ $73.24
199+ $72.26
249+ $71.28
499+ $70.31
999+ $68.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 44.5mm
R 31.8mm
X 61.9mm
Y 77.2mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 7kg
Load to Max Deflection 102kg
Weight 0.52 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
