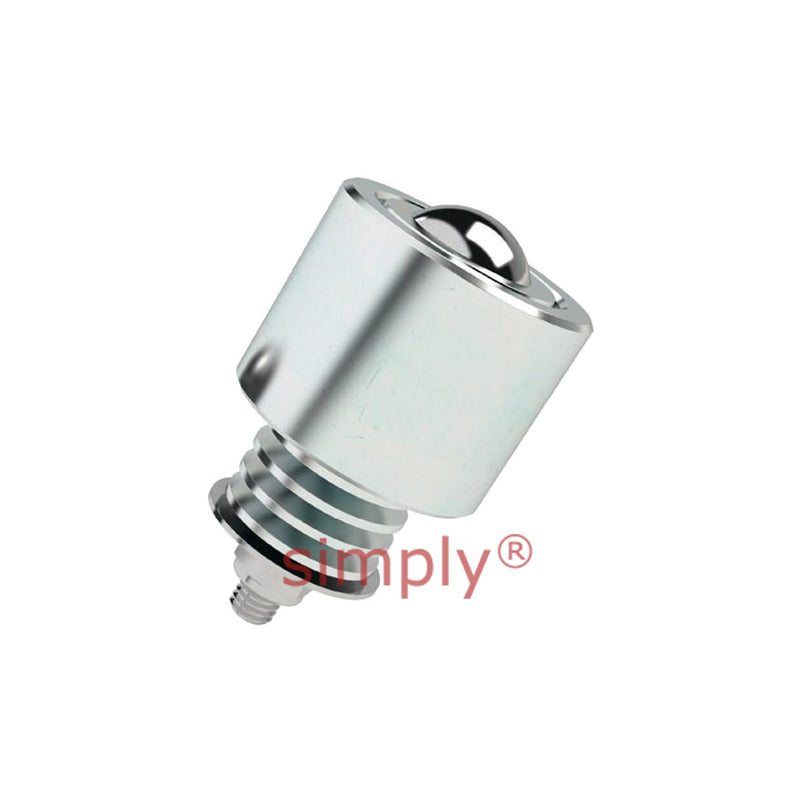

• High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 68kg - Allow 2-3 Days
1 1

SKU: 570-507A

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 68kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 68kg - Allow 2-3 Days
$128.07 ex VAT
$128.07 ex VAT
Sale Sold out

In stock

Price Break
4+ $84.11
9+ $79.38
14+ $78.44
19+ $77.49
49+ $76.55
74+ $75.60
99+ $70.88
199+ $69.93
249+ $68.99
499+ $68.04
999+ $66.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
25.4mm
Technical
--- Dimensions
Ball Diameter 25.4mm
D 44.5mm
R 31.8mm
X 61.9mm
Y 77.2mm
Z 19.2mm
Max Deflection 3.2mm
--- Loads and Speeds
Supports Load 68kg
Load to Max Deflection 125kg
Weight 0.52 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: 420 Stainless Steel
