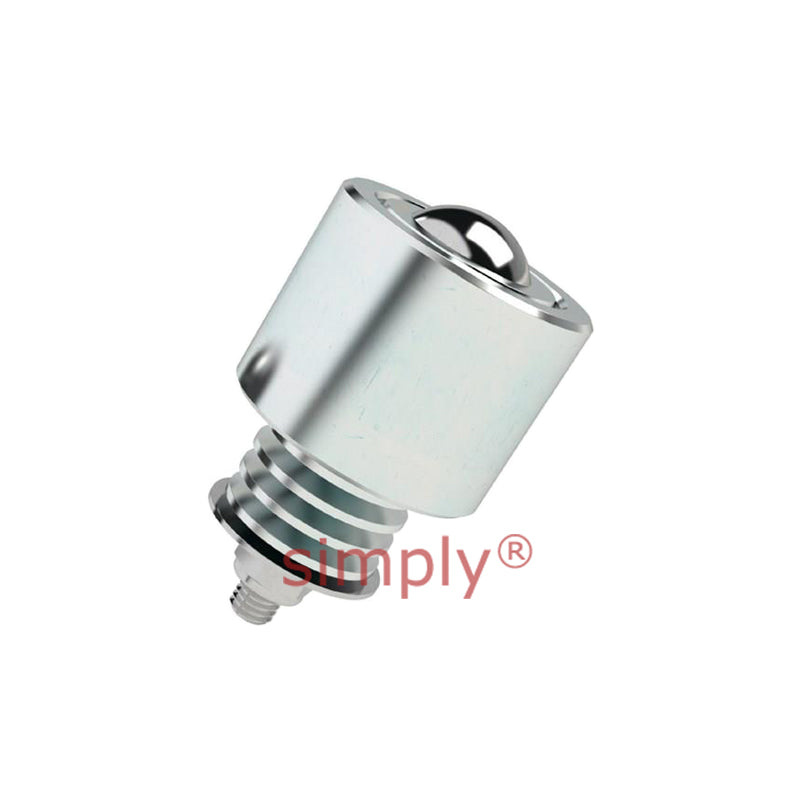

• High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 681kg - Allow 2-3 Days
1 1

SKU: 570-516

High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 681kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 681kg - Allow 2-3 Days
$305.39 ex VAT
$305.39 ex VAT
Sale Sold out

In stock

Price Break
4+ $200.54
9+ $189.28
14+ $187.02
19+ $184.77
49+ $182.52
74+ $180.26
99+ $169.00
199+ $166.74
249+ $164.49
499+ $162.24
999+ $157.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
38.1mm
Technical
--- Dimensions
Ball Diameter 38.1mm
D 60.3mm
R 59.4mm
X 146.1mm
Y 189.7mm
Z 35.6mm
Max Deflection 5.6mm
--- Loads and Speeds
Supports Load 681kg
Load to Max Deflection 863kg
Weight 2 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
