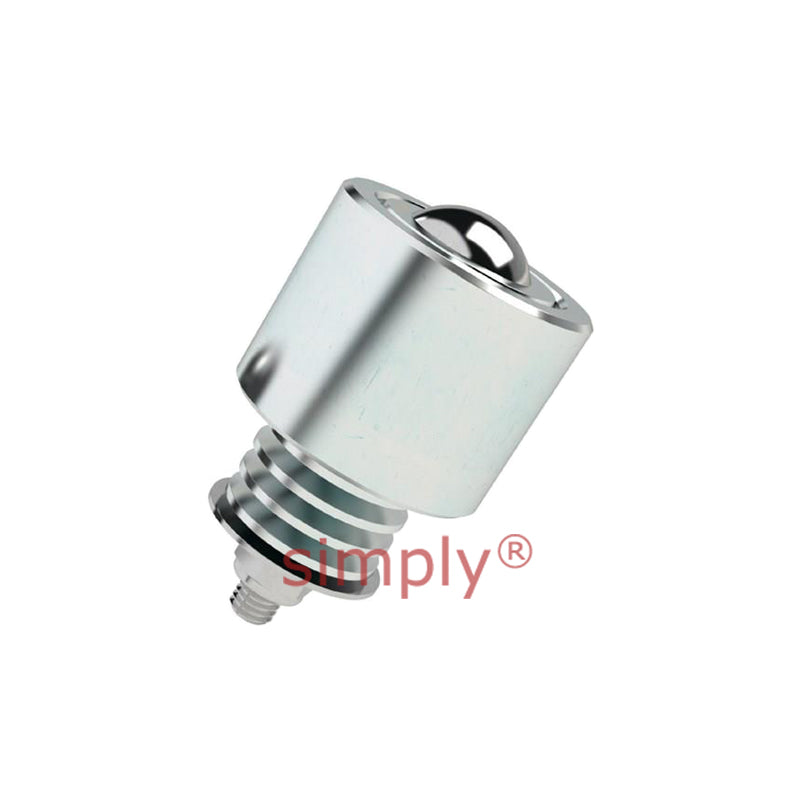

• High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1270kg - Allow 2-3 Days
1 1

SKU: 570-520

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1270kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 1270kg - Allow 2-3 Days
$788.93 ex VAT
$788.93 ex VAT
Sale Sold out

In stock

Price Break
4+ $518.09
9+ $488.98
14+ $483.16
19+ $477.34
49+ $471.52
74+ $465.70
99+ $436.59
199+ $430.77
249+ $424.95
499+ $419.13
999+ $407.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
50.8mm
Technical
--- Dimensions
Ball Diameter 50.8mm
D 101.6mm
R 101.6mm
X 174.6mm
Y 200.8mm
Z 43.2mm
Max Deflection 6.3mm
--- Loads and Speeds
Supports Load 1270kg
Load to Max Deflection 1797kg
Weight 9.1 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
