SKU: 570-702A

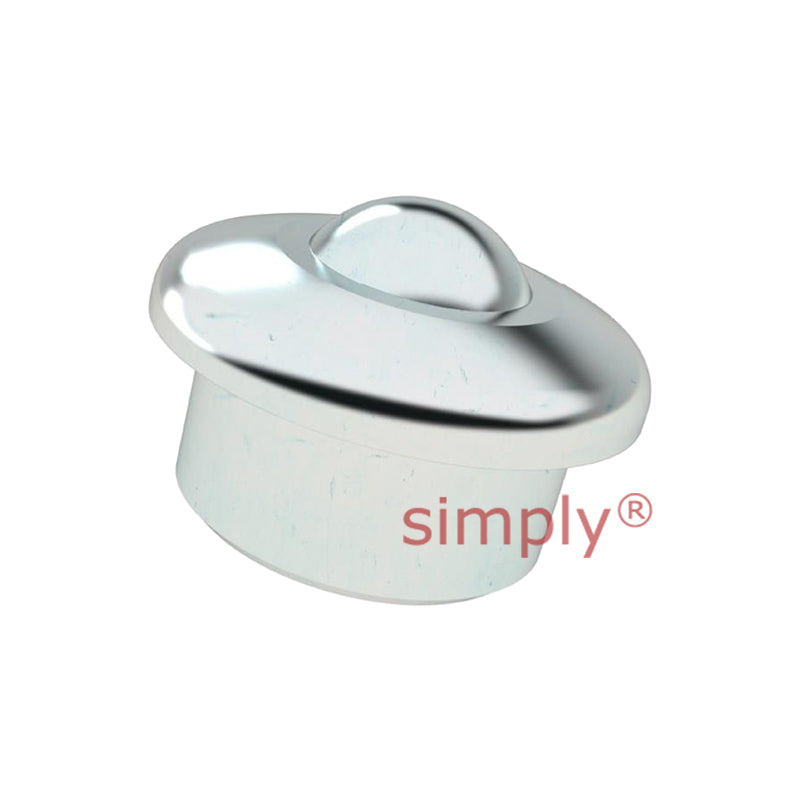

High-Performance Medium Duty Ball Transfer Unit with 22.2mm Stainless Steel Ball - Load Capacity 80kg - Allow 2-3 Days
- Regular price
- $58.45 ex VAT
- Sale price
- $58.45
- Regular price
-
Quantity Price Breaks
High-Performance Medium Duty Ball Transfer Unit with 22.2mm Stainless Steel Ball - Load Capacity 80kg - Allow 2-3 Days
- Regular price
- $58.45 ex VAT
- Sale price
- $58.45
- Regular price
-
Description
Push Fit Medium-Duty Stainless Steel Ball Transfer Unit: Often referred to as "Euro Style Ball Transfer Units" these ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing stainless steel ball running on several smaller support balls contained within a stainless steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Dia | = | 22.2mm |
| B | = | 20.7mm |
| D | = | 36mm |
| F | = | 45mm |
| Y | = | 9.8mm |
| Total Length | = | 30.5mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 80 kg |
| Weight | = | 0.21 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Case Hardened Steel< |
| br> | = | Ball: 402 Stainless Steel |
