SKU: 570-802

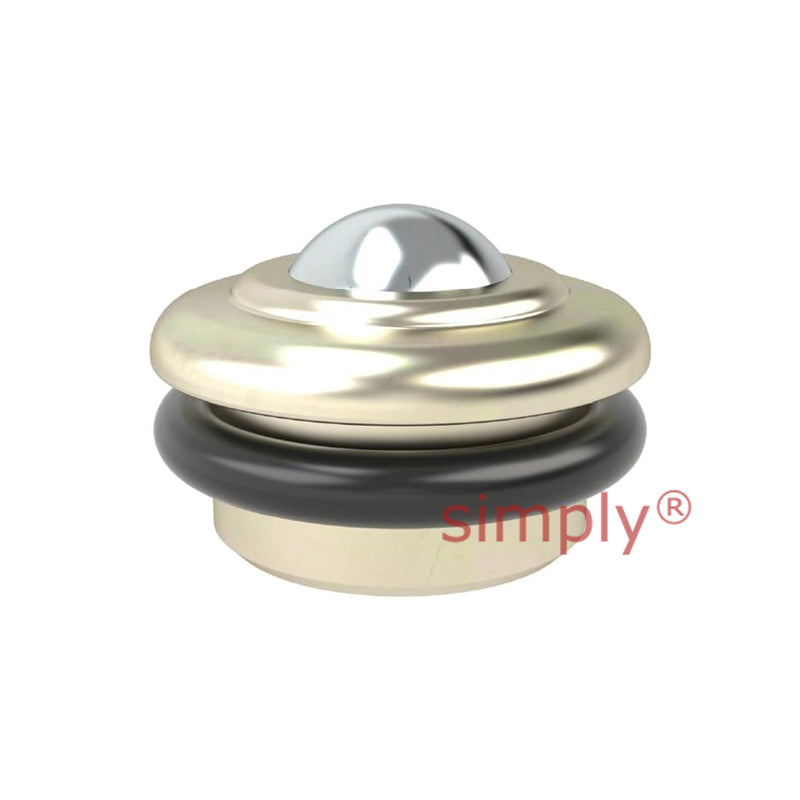

High-Performance Medium Duty Ball Transfer Unit with O-Ring with 20.7mm Steel Ball - Load Capacity 120kg - Allow 2-3 Days
- Regular price
- $51.85 ex VAT
- Sale price
- $51.85
- Regular price
-
Not in stock
Quantity Price Breaks
4
$46.15
9
$43.55
14
$43.04
19
$42.52
49
$42.00
74
$41.48
99
$38.89
199
$38.37
249
$37.85
499
$37.33
999
$36.30
SKU:
570-802
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 20.7mm Steel Ball - Load Capacity 120kg - Allow 2-3 Days
- Regular price
- $51.85 ex VAT
- Sale price
- $51.85
- Regular price
-
Description
CHN43UW9EB
This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.
Technical

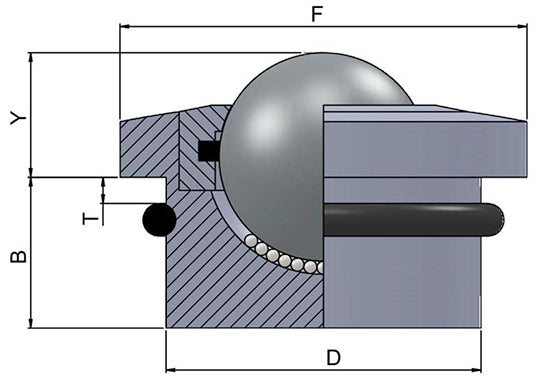

| --- | = | Dimensions |
| Ball Diameter | = | 22.2mm |
| T | = | 3mm |
| B | = | 20.7mm |
| D | = | 36mm |
| Y | = | 9.8mm |
| F | = | 45mm |
| Total Height | = | 30.5mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 120 kg |
| Weight | = | 0.2 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: Steel 9Cr180M1 |
