SKU: 570-802A
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 20.7mm Steel Ball - Load Capacity 80kg - Allow 2-3 Days
- Regular price
- $59.62 ex VAT
- Sale price
- $59.62
- Regular price
-
Not in stock
Quantity Price Breaks
4
$53.06
9
$50.08
14
$49.48
19
$48.89
49
$48.29
74
$47.70
99
$44.72
199
$44.12
249
$43.52
499
$42.93
999
$41.73
SKU:
570-802A
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 20.7mm Steel Ball - Load Capacity 80kg - Allow 2-3 Days
- Regular price
- $59.62 ex VAT
- Sale price
- $59.62
- Regular price
-
Description
GESTV0CWNP

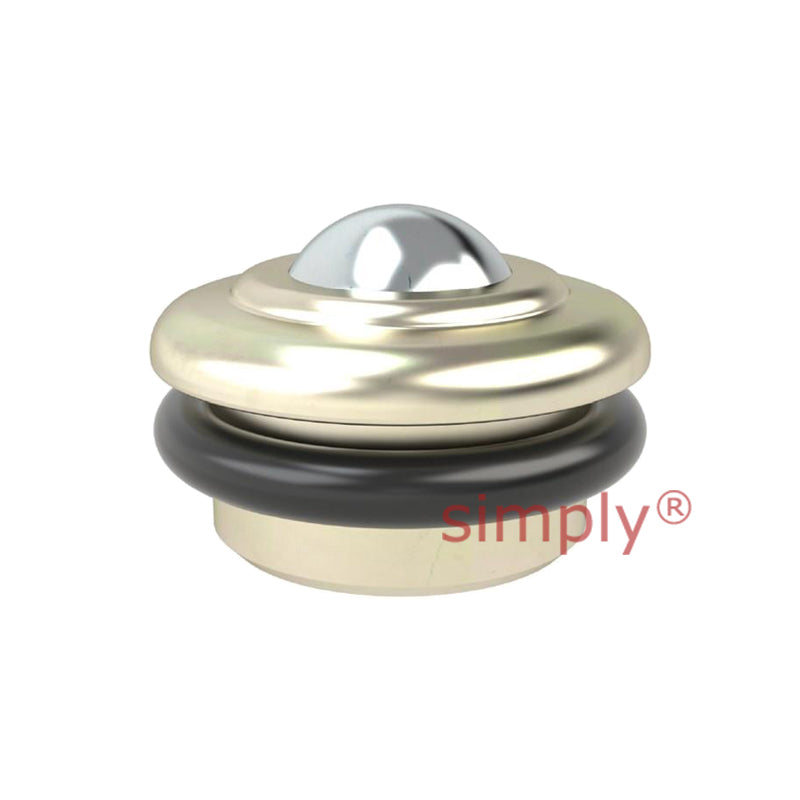

This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 22.2mm |
| T | = | 3mm |
| B | = | 20.7mm |
| D | = | 36mm |
| Y | = | 9.8mm |
| F | = | 45mm |
| Total Height | = | 30.5mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 80 kg |
| Weight | = | 0.2 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
