SKU: 570-804A

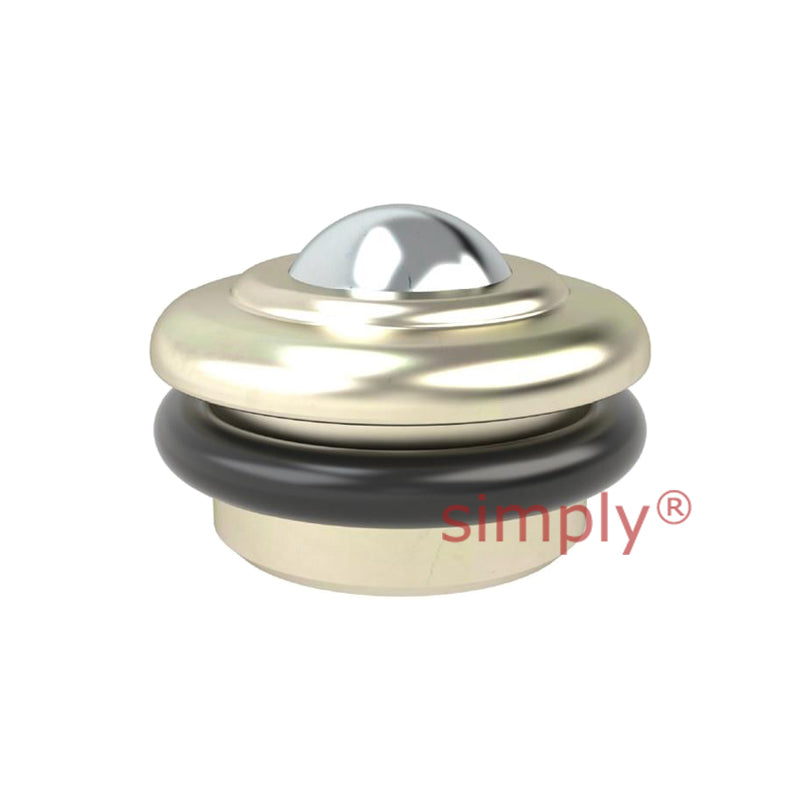

High-Performance Medium Duty Ball Transfer Unit with O-Ring with 34.5mm Steel Ball - Load Capacity 335kg - Allow 2-3 Days
- Regular price
- $123.13 ex VAT
- Sale price
- $123.13
- Regular price
-
Not in stock
Quantity Price Breaks
4
$109.59
9
$103.43
14
$102.20
19
$100.97
49
$99.74
74
$98.50
99
$92.35
199
$91.12
249
$89.88
499
$88.65
999
$86.19
SKU:
570-804A
High-Performance Medium Duty Ball Transfer Unit with O-Ring with 34.5mm Steel Ball - Load Capacity 335kg - Allow 2-3 Days
- Regular price
- $123.13 ex VAT
- Sale price
- $123.13
- Regular price
-
Description
GESTV0CWNP
This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 44.5mm |
| T | = | 5mm |
| B | = | 34.5mm |
| D | = | 62mm |
| Y | = | 19mm |
| F | = | 75mm |
| Total Height | = | 53.5mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 335 kg |
| Weight | = | 1.04 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
