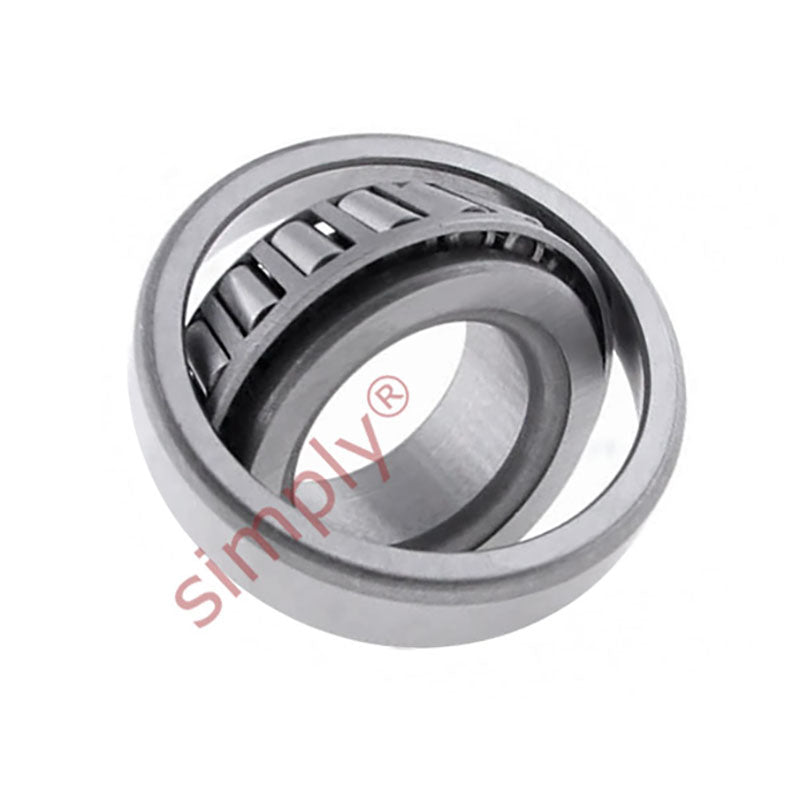

• SKF 575/572/Q Imperial Taper Roller Bearing 3x5.5115x1.4375 inches
1 1

SKU: 575/572/Q-SKF

SKF 575/572/Q Imperial Taper Roller Bearing 3x5.5115x1.4375 inches

SKF 575/572/Q Imperial Taper Roller Bearing 3x5.5115x1.4375 inches
$195.21 ex VAT
$195.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $130.76
19+ $123.42
29+ $121.95
39+ $120.48
49+ $119.01
74+ $117.54
99+ $110.19
199+ $108.72
249+ $107.25
499+ $105.79
999+ $102.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
139.99mm = 5.512 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Seals / Shields:
None
Technical
d 76.2mm
D 139.992mm
T 36.512mm
Dynamic load 187 kN
Static load 280 kN
Fatigue load limit Pu 32.5 kN
Reference speed 3400 rpm
Limiting speed 5000 rpm
Weight 2.45 kg
d1 110mm
B 36.098mm
C 28.575mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 31mm
da max 94mm
db min 89.5mm
Da min 120mm
Da max 127mm
Db min 131mm
Ca min 5mm
Cb min 7.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.4
Calculation factor Y 1.5
Calculation factor Y0 0.8
