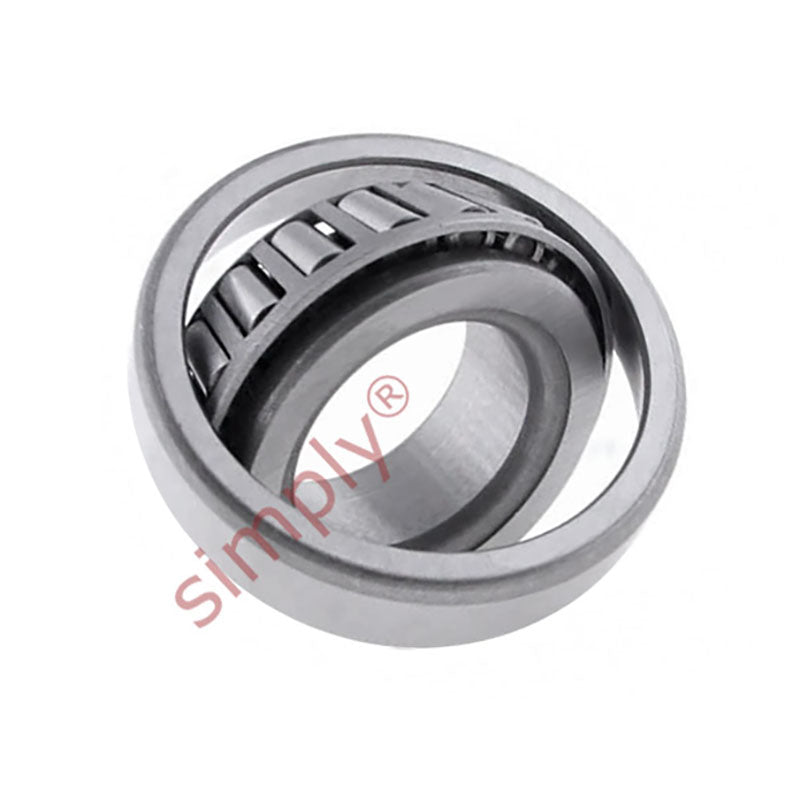

• SKF 598/592A/Q Imperial Taper Roller Bearing 3.625x6x1.5625 inches
1 1

SKU: 598/592A/Q-SKF

SKF 598/592A/Q Imperial Taper Roller Bearing 3.625x6x1.5625 inches

SKF 598/592A/Q Imperial Taper Roller Bearing 3.625x6x1.5625 inches
$171.02 ex VAT
$171.02 ex VAT
Sale Sold out

In stock

Price Break
10+ $114.55
19+ $108.11
29+ $106.83
39+ $105.54
49+ $104.25
74+ $102.97
99+ $96.53
199+ $95.24
249+ $93.96
499+ $92.67
999+ $90.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
92.08mm = 3.625 (3-5/8) inch
Outside Diameter:
152.4mm = 6 inch
Width:
39.69mm = 1.563 (1-9/16) inch
Seals / Shields:
None
Technical
d 92.075mm
D 152.4mm
T 39.688mm
Dynamic load 194 kN
Static load 305 kN
Fatigue load limit Pu 34.5 kN
Reference speed 3000 rpm
Limiting speed 4500 rpm
Weight 2.7 kg
d1 122mm
B 36.322mm
C 30.162mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 37mm
da max 101mm
db min 106mm
Da min 128mm
Da max 141mm
Db min 141mm
Ca min 4mm
Cb min 9.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.44
Calculation factor Y 1.35
Calculation factor Y0 0.8
