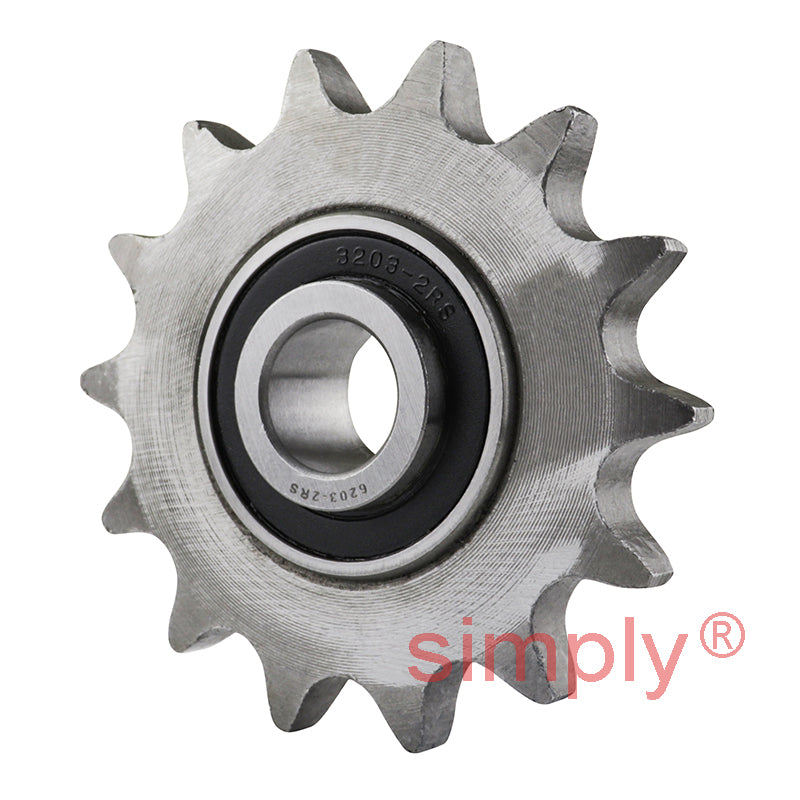

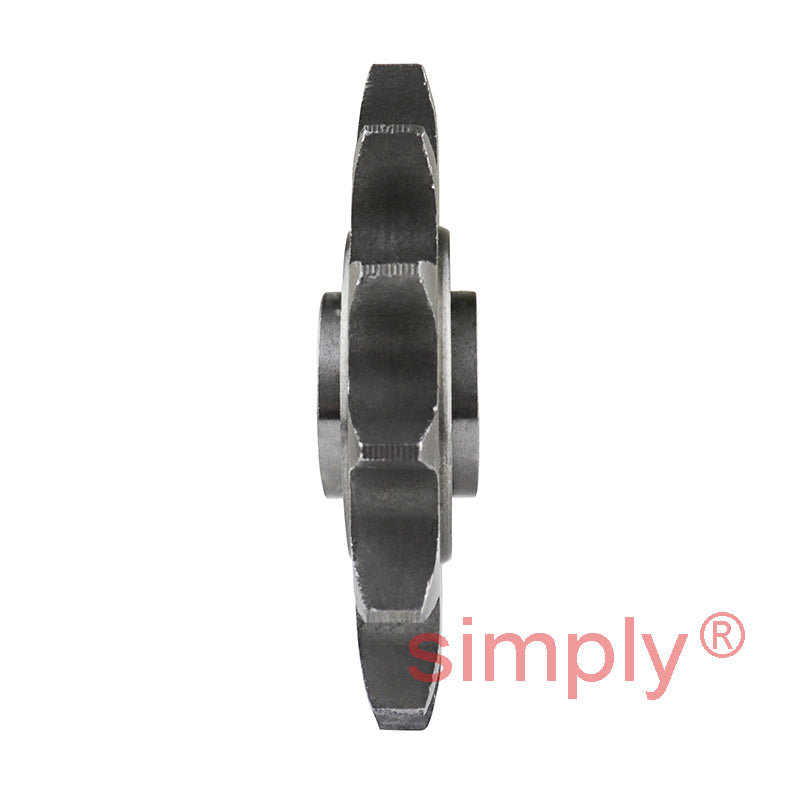

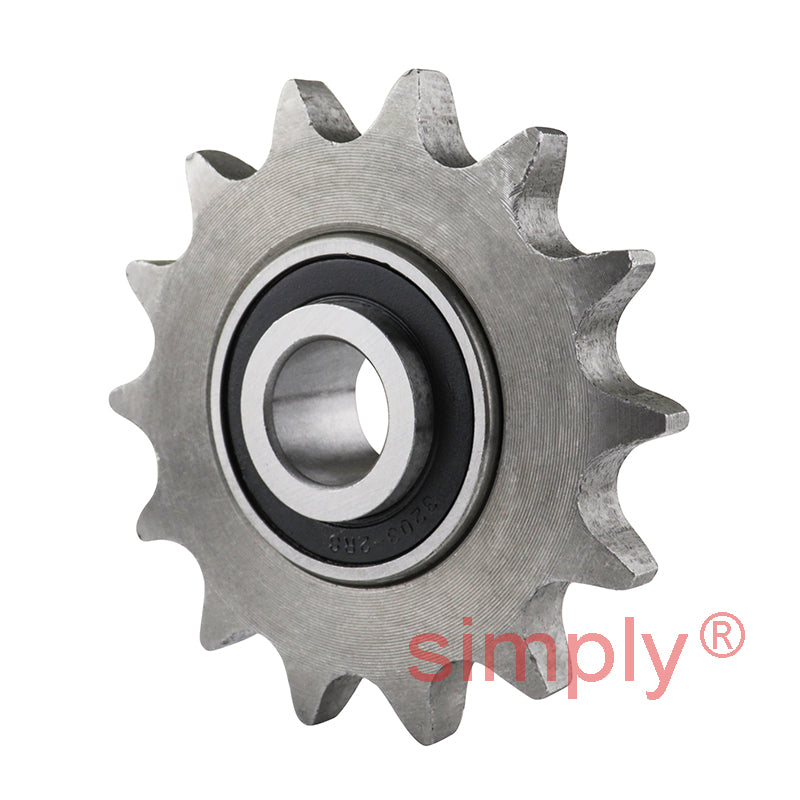

• 14 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
  • 14 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
  • 14 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
1 3

SKU: 5SR14-IDLER

14 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain

14 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
$10.27 ex VAT
$10.27 ex VAT
Sale Sold out

In stock

Price Break
5+ $6.88
9+ $6.49
19+ $6.42
29+ $6.34
49+ $6.26
74+ $6.18
99+ $5.80
199+ $5.72
249+ $5.64
499+ $5.57
999+ $5.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Idler Sprockets: Description sprockets are manufactured to internationally recognised standards DIN8187-ISOR 606 and are produced from C45 steel UNI EN 10083-1 having a minimum strength of 600 Nmm 2. Conveniently stocked with an integral ball bearing fitted (dimension ‘D’ for bore size)."
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
14
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
No of Teeth 14
Pitch Chain Diameter Dp 71.34mm
Outer Diameter De 78mm
Bore Diameter 16.2mm
Tooth Width A 9.1mm
Hub Diameter F 40mm
H 18.3mm
J 12mm
Chain Type 10B-1
58x38 inch Weight
0.24 kg N/A
