SKU: 5x147.NBR

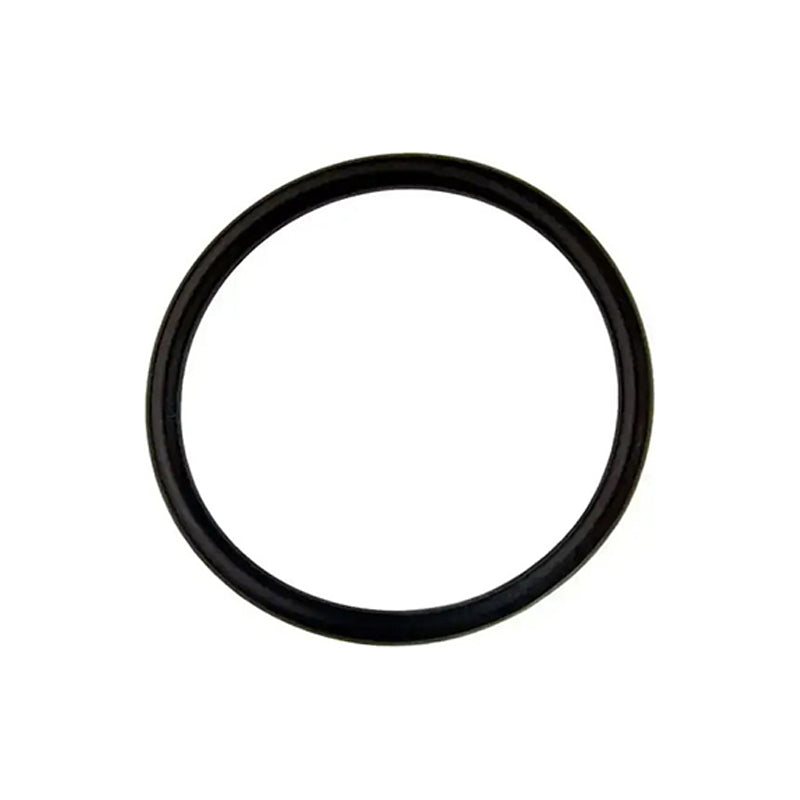

5mm Section 147mm Bore NITRILE 70 Shore Rubber O-Ring
5mm Section 147mm Bore NITRILE 70 Shore Rubber O-Ring
Regular price
$1.90
ex VAT
Regular price
Sale price
$1.90
ex VAT
In stock
Price Break
5+
$1.00
10+
$0.86
20+
$0.79
50+
$0.72
100+
$0.57
500+
$0.50
1000+
$0.43
Quantity
Couldn't load pickup availability
Description
Description
|
Nitrile Rubber O Rings: Probably one of the most widely used and simplest types of seal they are found everywhere from plumbing installations to the space shuttle, they are common in engines and gearboxes, garden hoses, pumps etc. They can be used as face to face seals (like a gasket) or as shaft seals and facilitate both rotary and linear movement. They have a wide operating temperature range from - 30 deg Celsius up to + 120 deg Celsius and a high degree of chemical resistance. Benefits: Excellent sealing properties and durability, wide temp range, high resistance to many chemicals and petroleum based fuels including petrol, diesel, LPG Material Specification: Nitrile Buna Rubber (NBR). |
- Brand / Quality:
- Simply NBR O-Ring - High Quality
- Cross Section:
- 5mm
- Inside Diameter:
- 147mm
- Outside Diameter:
- 157mm
- Hardness:
- * 70 Shore (Most Common)
Technical
Technical
| Cord Thickness (w) | 5mm |
|---|---|
| Inside Diameter (d) | 147mm |
| Outside Diameter (D) | 157mm |
