SKU: 60-1-BB-NO12-RENOLD

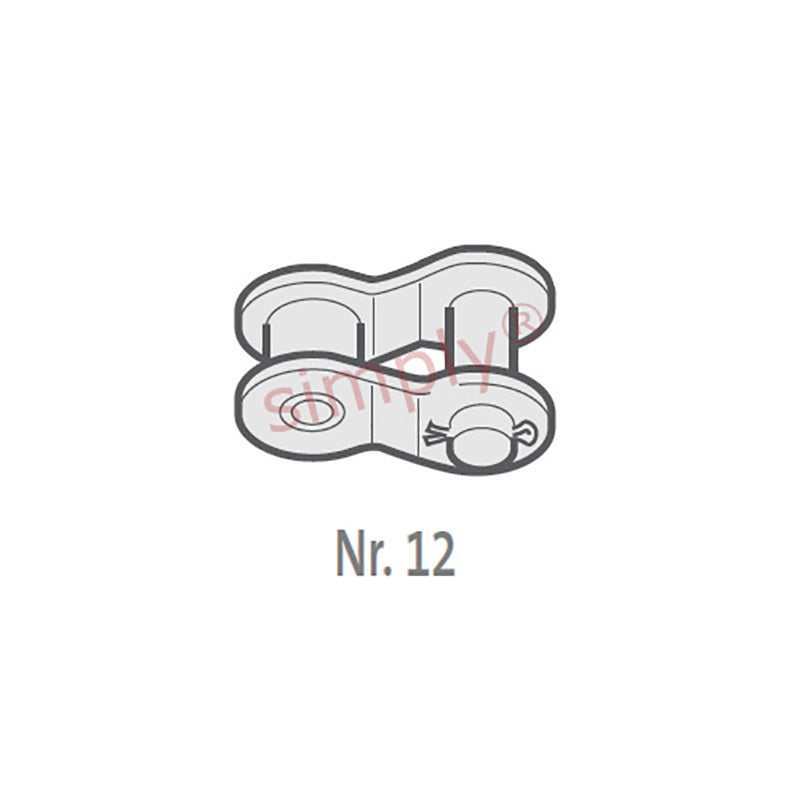

Renold Blue Box 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch

Name: Renold Blue Box 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Brand: Renold
SKU: 60-1-BB-NO12-RENOLD
Price: 16.79 USD
Availability: InStock

$16.79 ex VAT

Sale Sold out

In stock

Price Break

2+ $11.25

5+ $10.61

10+ $10.49

29+ $10.36

49+ $10.23

75+ $10.11

100+ $9.48

200+ $9.35

250+ $9.22

500+ $9.10

1000+ $8.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Renold - High Quality
Pitch:: 19.05mm = 0.75 (3/4) inch

Technical

Pitch (A)	0.75 inch
Pitch (A)	19.05mm
Inside Width min (B)	12.57mm
Roller Diameter max (C)	11.91mm
Plate Height max (D)	17.5mm
Plate Width Inner max (E)	2.45mm
Plate Width Outer max (F)	2.45mm
Pin Diameter max (G)	5.94mm
Pin Length max (H2)	25.3mm
Connecting Link Extension max (J)	2.6mm
ISO606 Tensile Strength min	31300 N
Weight	1.5kg/m
