SKU: 60-1-BB-NO30-RENOLD
Renold Blue Box 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $16.67 ex VAT
- Sale price
- $16.67
- Regular price
-
In stock
Quantity Price Breaks
2
$14.84
5
$14.00
10
$13.84
29
$13.67
49
$13.50
75
$13.34
100
$12.50
200
$12.34
250
$12.17
500
$12.00
1000
$11.67
SKU:
60-1-BB-NO30-RENOLD
Renold Blue Box 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $16.67 ex VAT
- Sale price
- $16.67
- Regular price
-
Description

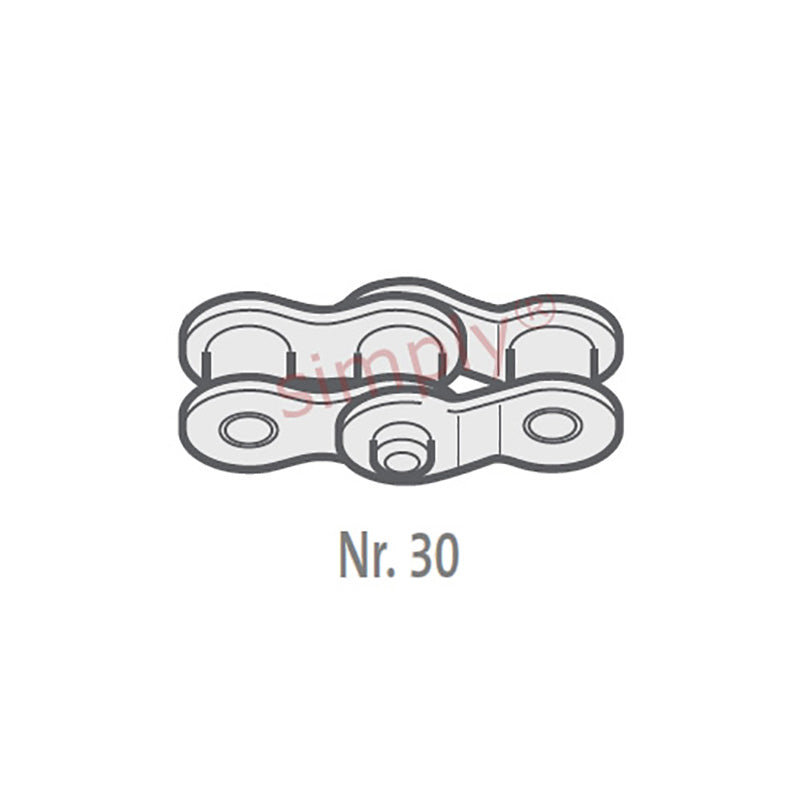

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 25.3mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| ISO606 Tensile Strength min | = | 31300 N |
| Weight | = | 1.5kg/m |
