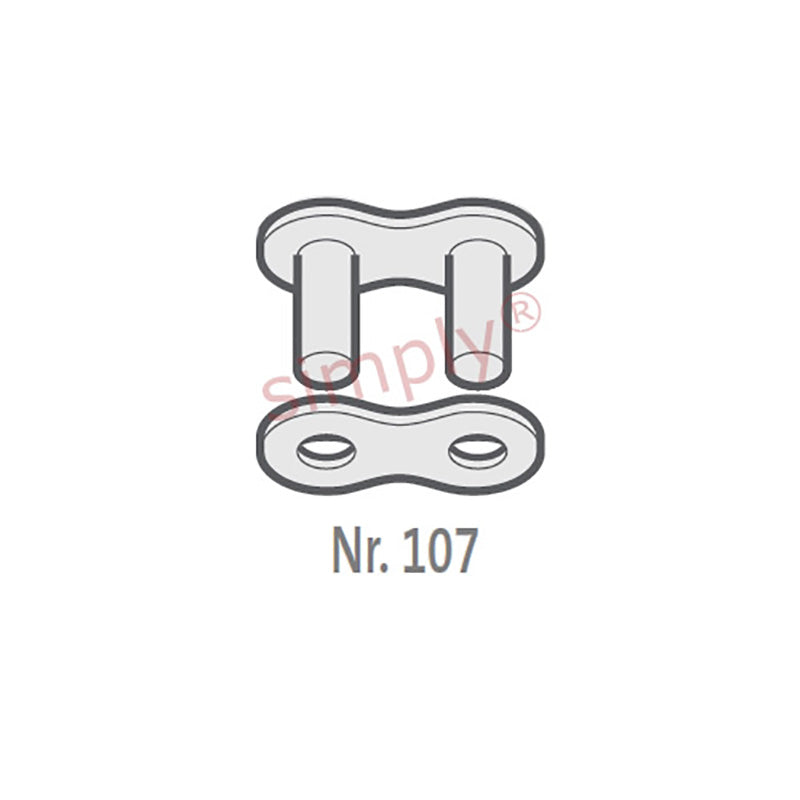

• Renold Synergy 60-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 3/4 inch Pitch
  • Renold
1 2

SKU: 60-1-SYN-NO107-RENOLD

Renold Synergy 60-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 3/4 inch Pitch

Renold Synergy 60-1-NO107 ANSI / AS Simplex Chain Outer Link To Be Riveted 3/4 inch Pitch
$19.66 ex VAT
$19.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $13.17
5+ $12.43
10+ $12.28
29+ $12.14
49+ $11.99
75+ $11.84
100+ $11.10
200+ $10.95
250+ $10.80
500+ $10.66
1000+ $10.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
19.05mm = 0.75 (3/4) inch
Technical
Pitch (A) 0.75 inch
Pitch (A) 19.05mm
Inside Width min (B) 12.57mm
Roller Diameter max (C) 11.91mm
Plate Height max (D) 17.5mm
Plate Width Inner max (E) 2.45mm
Plate Width Outer max (F) 2.45mm
Pin Diameter max (G) 5.94mm
Pin Length max (H1) 25.3mm
Connecting Link Extension max (J) 2.6mm
ISO606 Tensile Strength min 31300 N
Weight 1.5kg/m
