SKU: 60-2-BB-NO11-RENOLD
Renold Blue Box 60-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $16.00 ex VAT
- Sale price
- $16.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
$14.24
5
$13.44
10
$13.28
29
$13.12
49
$12.96
75
$12.80
100
$12.00
200
$11.84
250
$11.68
500
$11.52
1000
$11.20
SKU:
60-2-BB-NO11-RENOLD
Renold Blue Box 60-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $16.00 ex VAT
- Sale price
- $16.00
- Regular price
-
Description

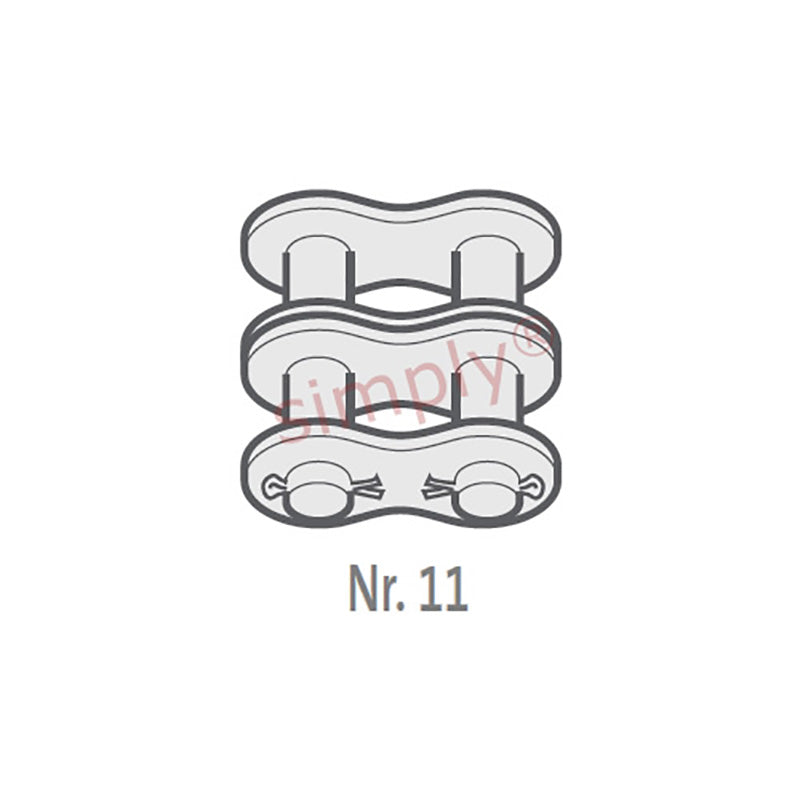

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 48.1mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 62600 N |
| Weight | = | 0.01kg/m |
