SKU: 60-2-BB-NO30-RENOLD

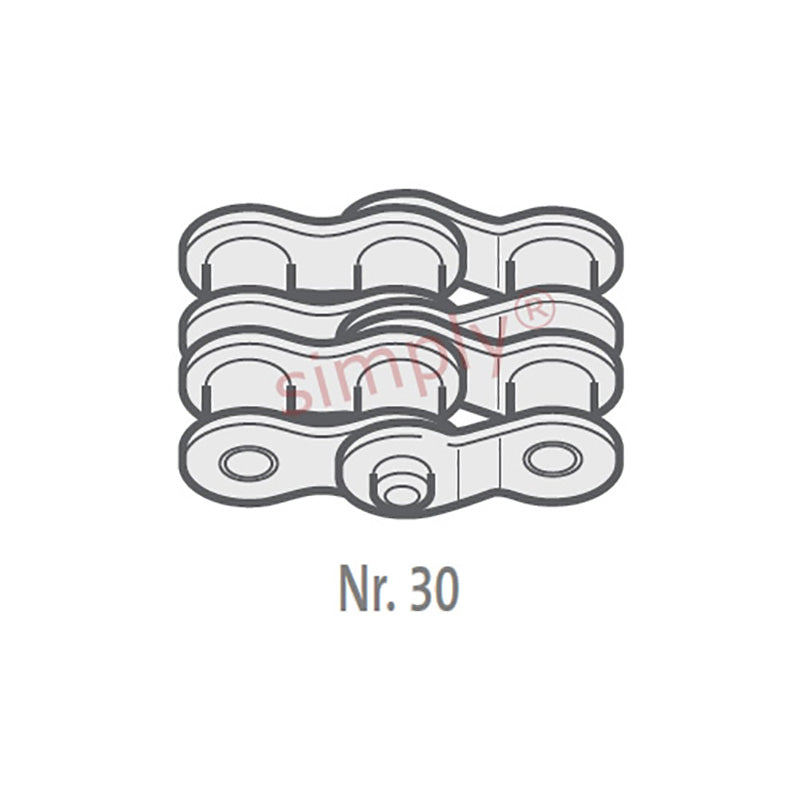

Renold Blue Box 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $31.01 ex VAT
- Sale price
- $31.01
- Regular price
-
In stock
Quantity Price Breaks
2
$27.60
5
$26.05
10
$25.74
29
$25.43
49
$25.12
75
$24.81
100
$23.26
200
$22.95
250
$22.64
500
$22.33
1000
$21.71
SKU:
60-2-BB-NO30-RENOLD
Renold Blue Box 60-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $31.01 ex VAT
- Sale price
- $31.01
- Regular price
-
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 48.1mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 62600 N |
| Weight | = | 0.01kg/m |
