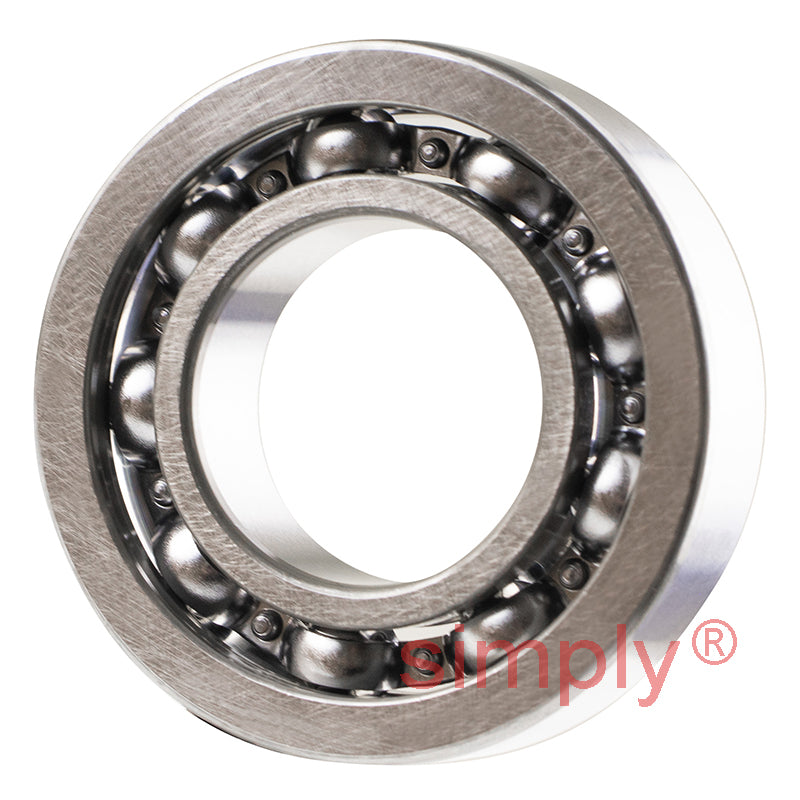

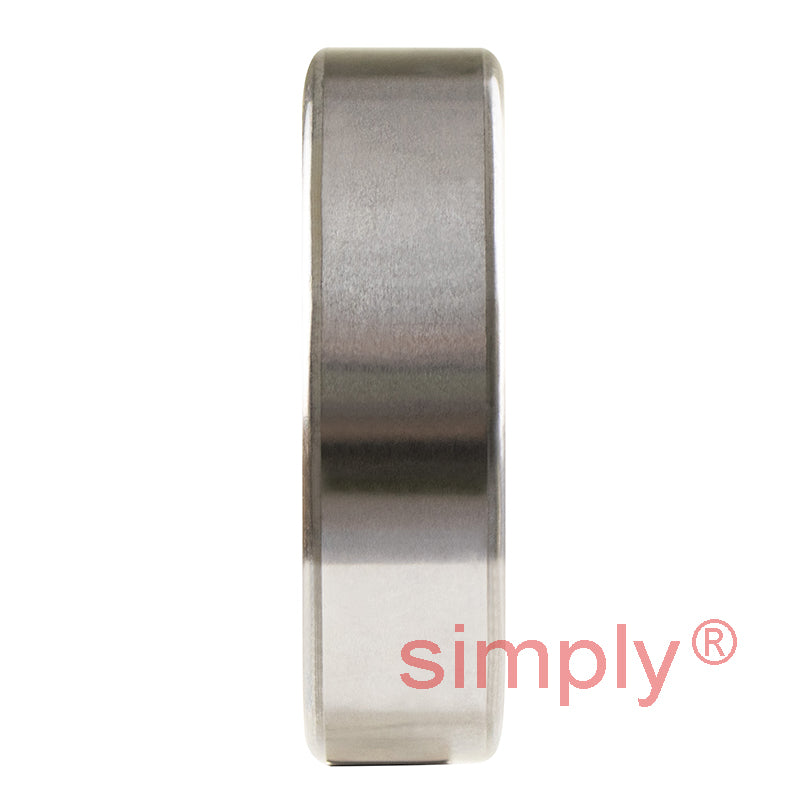

• NTN 60/22 Open Type Deep Groove Ball Bearing 22x44x12mm
  • NTN 60/22 Open Type Deep Groove Ball Bearing 22x44x12mm
  • NTN 60/22 Open Type Deep Groove Ball Bearing 22x44x12mm
  • NTN
1 4

SKU: 60/22-NTN

NTN 60/22 Open Type Deep Groove Ball Bearing 22x44x12mm

NTN 60/22 Open Type Deep Groove Ball Bearing 22x44x12mm
$13.85 ex VAT
$13.85 ex VAT
Sale Sold out

Equivalent to: 60/22CM

In stock

Price Break
3+ $9.27
5+ $8.75
10+ $8.65
25+ $8.54
49+ $8.44
74+ $8.34
99+ $7.82
199+ $7.71
249+ $7.61
499+ $7.50
999+ $7.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
22mm
Outside Diameter:
44mm
Width:
12mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 22mm
D 44mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 10.4 kN
C<sub>or</sub> 5.05 kN
C<sub>u</sub> 0.395 kN
f<sub>0</sub> 13.9 kN
Grease 17000 rpm
Oil 20000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 26mm
D<sub>a</sub> Max. 40mm
r<sub>as</sub> Max. 0.6mm
Weight 0.074 kg
