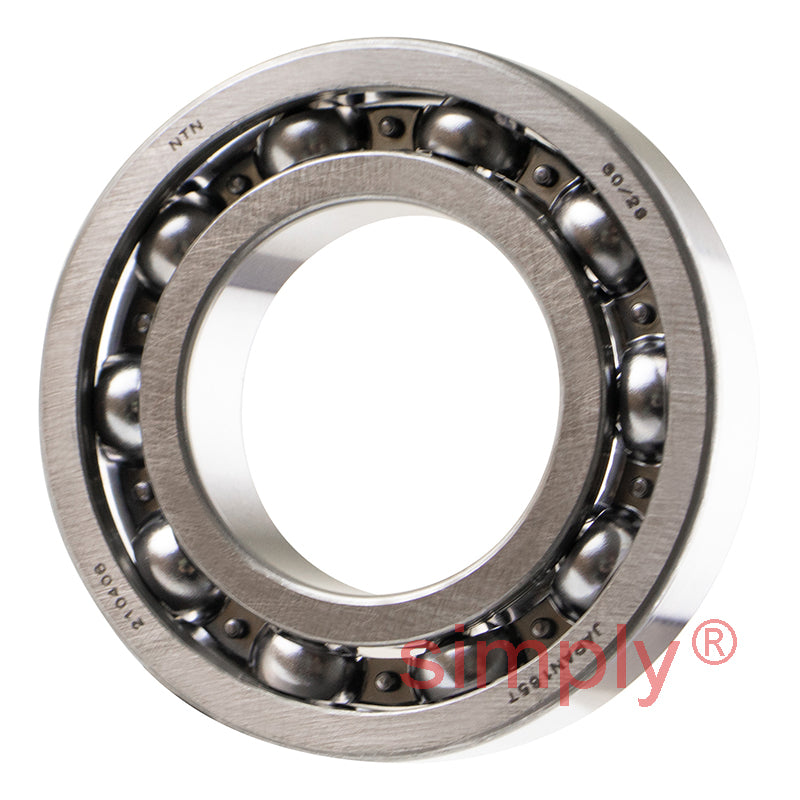

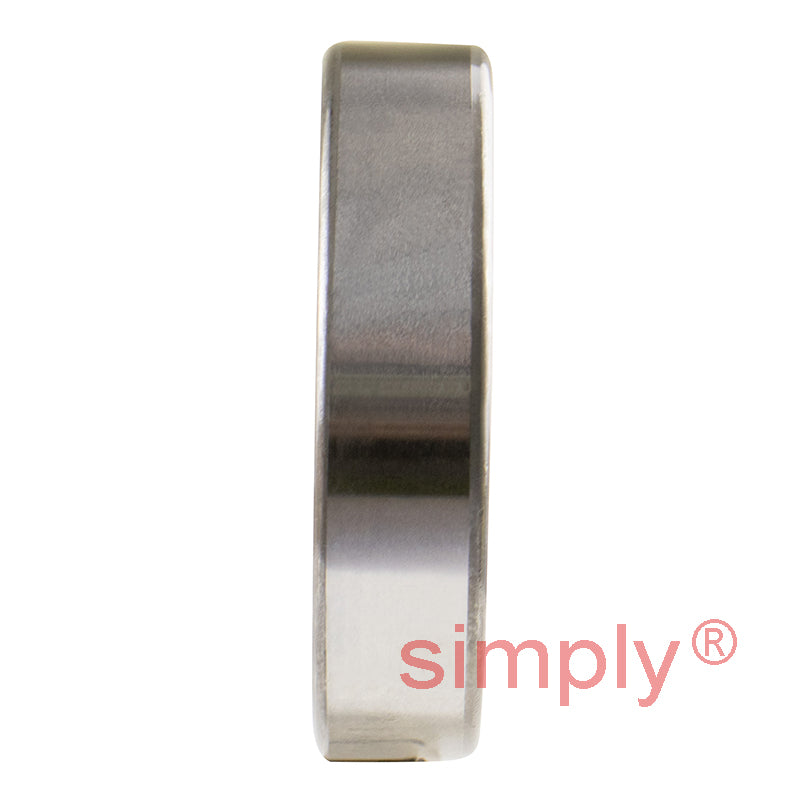

• NTN 60/28 Open Type Deep Groove Ball Bearing 28x52x12mm
  • NTN 60/28 Open Type Deep Groove Ball Bearing 28x52x12mm
  • NTN 60/28 Open Type Deep Groove Ball Bearing 28x52x12mm
  • NTN
1 4

SKU: 60/28-NTN

NTN 60/28 Open Type Deep Groove Ball Bearing 28x52x12mm

NTN 60/28 Open Type Deep Groove Ball Bearing 28x52x12mm
$14.06 ex VAT
$14.06 ex VAT
Sale Sold out

Equivalent to: 60/28CM

In stock

Price Break
3+ $9.42
5+ $8.89
10+ $8.78
25+ $8.68
49+ $8.57
74+ $8.46
99+ $7.94
199+ $7.83
249+ $7.72
499+ $7.62
999+ $7.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
28mm
Outside Diameter:
52mm
Width:
12mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 28mm
D 52mm
B 12mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 13.8 kN
C<sub>or</sub> 7.4 kN
C<sub>u</sub> 0.58 kN
f<sub>0</sub> 14.5 kN
Grease 14000 rpm
Oil 16000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 32mm
D<sub>a</sub> Max. 48mm
r<sub>as</sub> Max. 0.6mm
Weight 0.098 kg
