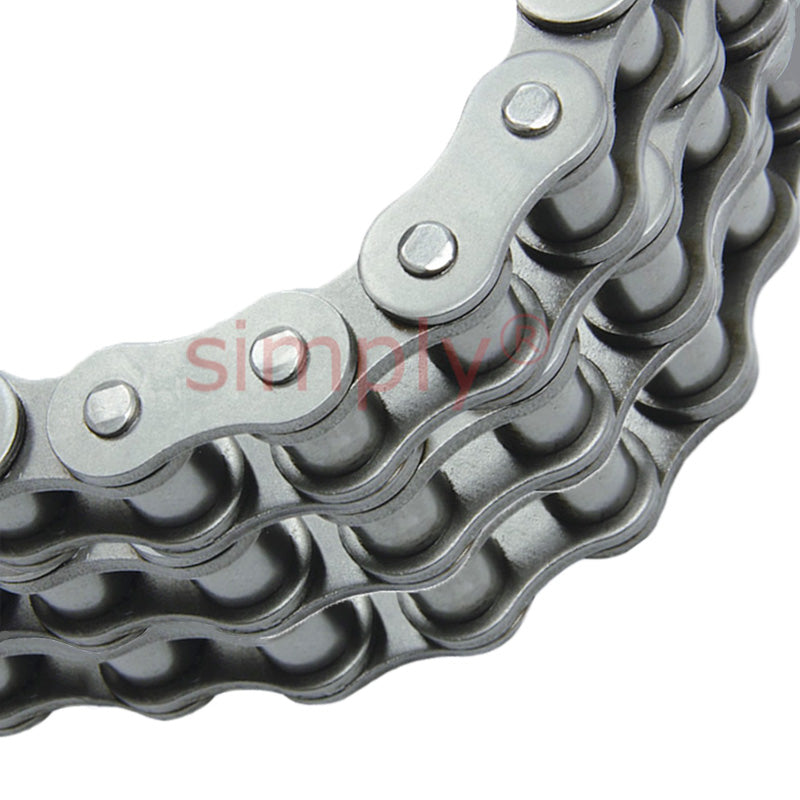

• Branded ANSI/ASA60-3 Triplex Roller Chain 3/4 inch Pitch 5 Metres
1 1

SKU: 60-3-5MTR-MB

Branded ANSI/ASA60-3 Triplex Roller Chain 3/4 inch Pitch 5 Metres

Branded ANSI/ASA60-3 Triplex Roller Chain 3/4 inch Pitch 5 Metres
$164.82 ex VAT
$164.82 ex VAT
Sale Sold out

In stock

Price Break
2+ $110.41
5+ $104.21
10+ $102.96
29+ $101.72
49+ $100.48
75+ $99.24
100+ $93.04
200+ $91.80
250+ $90.56
500+ $89.32
1000+ $86.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
19.05mm = 0.75 (3/4) inch

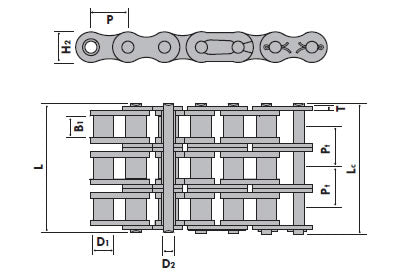

Technical
Pitch (P) 19.05mm = 0.75 (3/4) inch
Roller Diameter (D1 max) 11.91mm
Width between inner plates (B1 min) 12.57mm
Pin dia meter (D2 max) 5.94mm
Pin length (L max) 48.8mm
Pin length (Lc max) 50.5mm
Inner plate depth (H2 max) 18mm
Plate thickness (T max) 2.42mm
Ultimate tensile strength (Q min) kN/LB 63.60/14455
Average tensile strength (Q0) kN 82.1
Transverse pitch (Pt) mm 22.78
Weight per meter (q) kg/m 2.92
