• NTN 60/32 Open Type Deep Groove Ball Bearing 32x58x13mm
  • NTN 60/32 Open Type Deep Groove Ball Bearing 32x58x13mm
  • NTN 60/32 Open Type Deep Groove Ball Bearing 32x58x13mm
  • NTN
1 4

SKU: 60/32-NTN

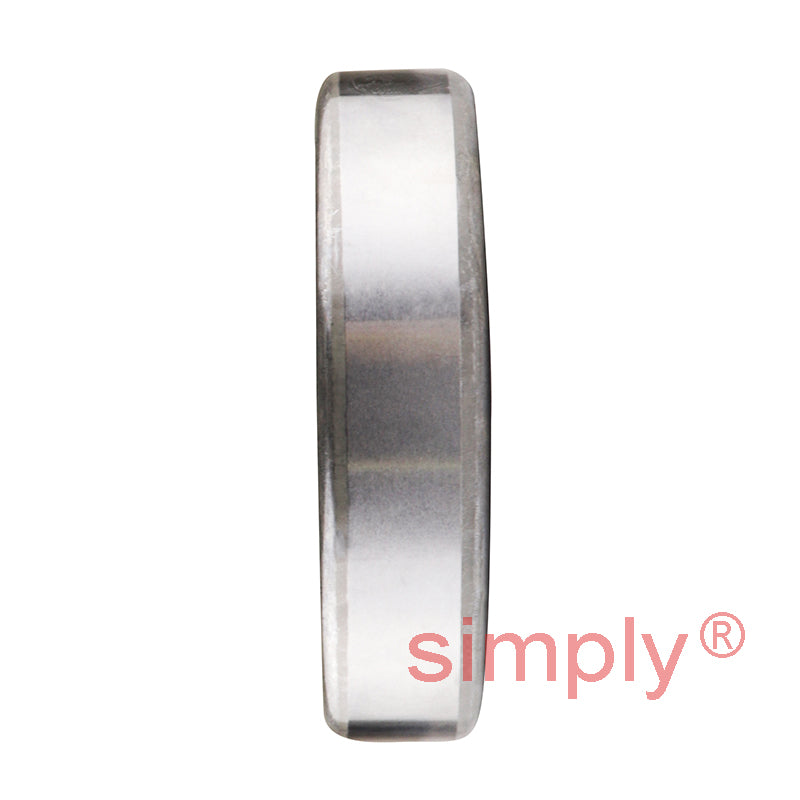

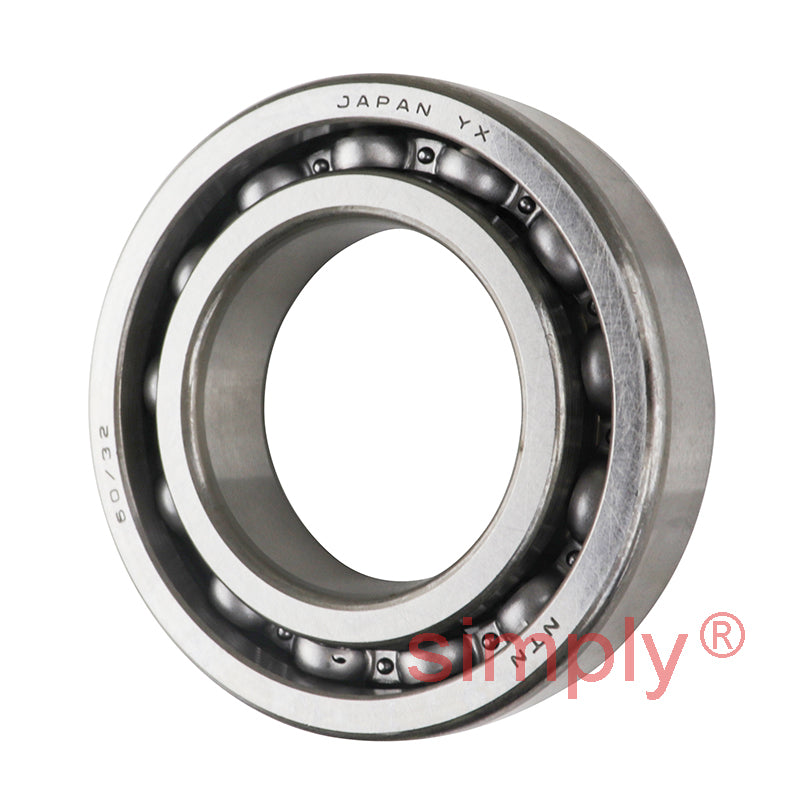

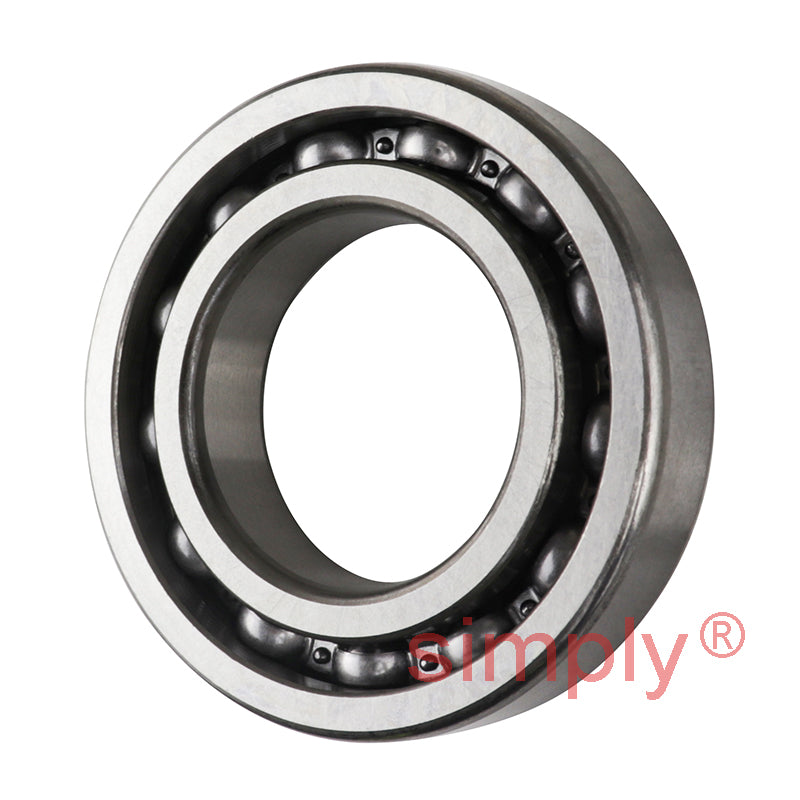

NTN 60/32 Open Type Deep Groove Ball Bearing 32x58x13mm

NTN 60/32 Open Type Deep Groove Ball Bearing 32x58x13mm
$16.78 ex VAT
$16.78 ex VAT
Sale Sold out

Equivalent to: 60/32CM

In stock

Price Break
3+ $11.24
5+ $10.61
10+ $10.48
25+ $10.36
49+ $10.23
74+ $10.10
99+ $9.47
199+ $9.35
249+ $9.22
499+ $9.09
999+ $8.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
32mm
Outside Diameter:
58mm
Width:
13mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 32mm
D 58mm
B 13mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 13.1 kN
C<sub>or</sub> 8.05 kN
C<sub>u</sub> 0.615 kN
f<sub>0</sub> 15.4 kN
Grease 12000 rpm
Oil 15000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 37mm
D<sub>a</sub> Max. 53mm
r<sub>as</sub> Max. 1mm
Weight 0.129 kg
