SKU: 6001-2NSE-NACHI
NACHI 60012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
NACHI 60012NSE Contact Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
Regular price
$6.67
ex VAT
Regular price
Sale price
$6.67
ex VAT
Equivalent to: 6001NSE 6001DU 6001RS 6001RSH 6001P 6001RSR 6001LU 6001DDU 60012RS 60012RS1 60012RSH 6001PP 60012RSR 60012RSR
In stock
Price Break
5+
$4.47
9+
$4.22
19+
$4.17
29+
$4.12
49+
$4.07
74+
$4.02
99+
$3.77
199+
$3.72
249+
$3.67
499+
$3.62
999+
$3.51
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical

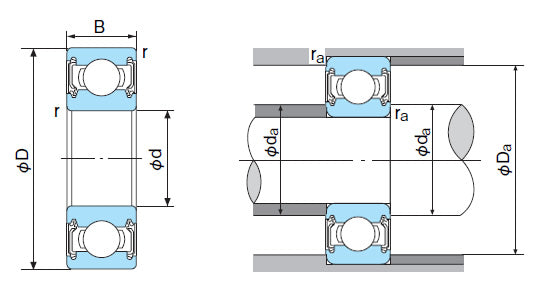

| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Width B | 8mm |
| Min radius r | 0.3mm |
| Dynamic load | 5100 kN |
| Static load | 2390 kN |
| Max speed | 28000 rpm |
| da min | 14mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 0.023 kg |
