SKU: 6001-2RS-CDX

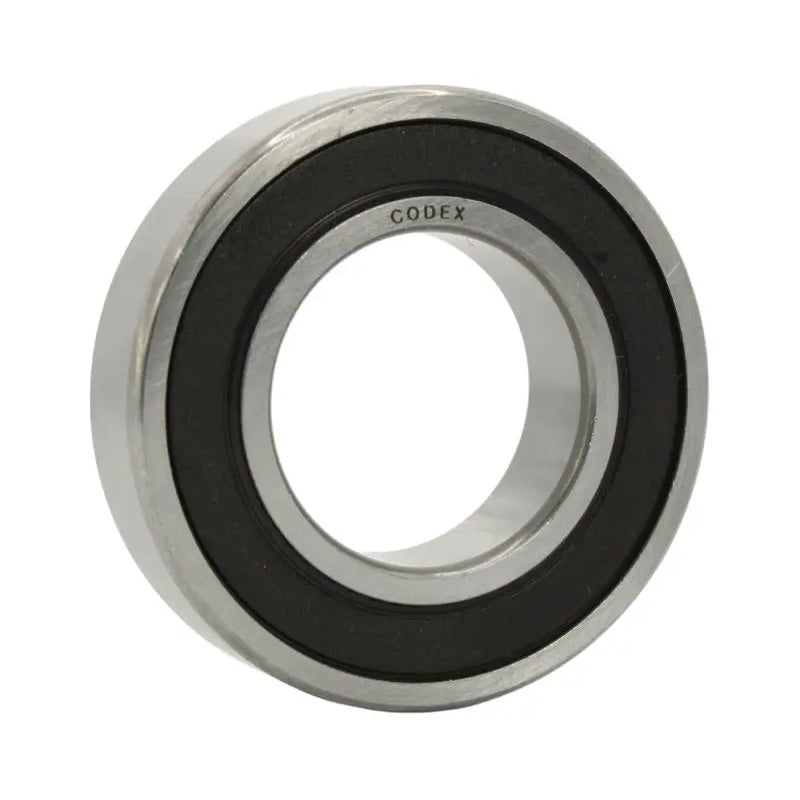

Codex 60012RS Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
Codex 60012RS Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
Regular price
$5.38
ex VAT
Regular price
Sale price
$5.38
ex VAT
Equivalent to: 60012RS 60012RSH 60012RS1 60012RSR 60012RSL 6001LFS 6001EE 6001DU 6001LLU EL122RS 6001PP 9101PP 101KSZZ 993L01 6101KK 10L12
In stock
Price Break
4+
$3.60
10+
$3.40
20+
$3.36
30+
$3.32
50+
$3.28
75+
$3.24
100+
$3.04
200+
$3.00
250+
$2.96
500+
$2.92
1000+
$2.83
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| Dynamic load C | 5.4 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 |
| Reference speed | 60000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.022 kg |
| d1 | 17mm |
| D2 | 24.8mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 13 |
