SKU: 6001-2Z/C3-KOY

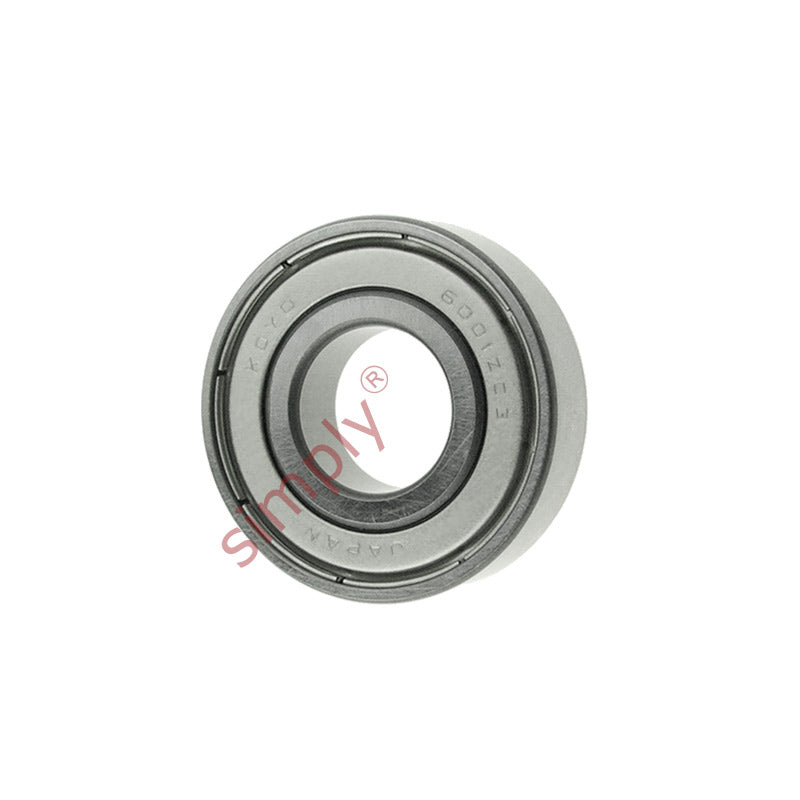

KOYO 60012ZC3 Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Equivalent to: 6001ZZEC3 6001ZZC3 6001.2ZC3 6001KDDC3 6001DDC3 60012ZRC3 6001FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Width B | 8mm |
| Min radius r | 0.3mm |
| Dynamic load | 5.1 kN |
| Static load | 2.4 kN |
| Max speed in oil | 32000 rpm |
| Max speed in grease | 17000 rpm |
