SKU: 6001-2Z-EU

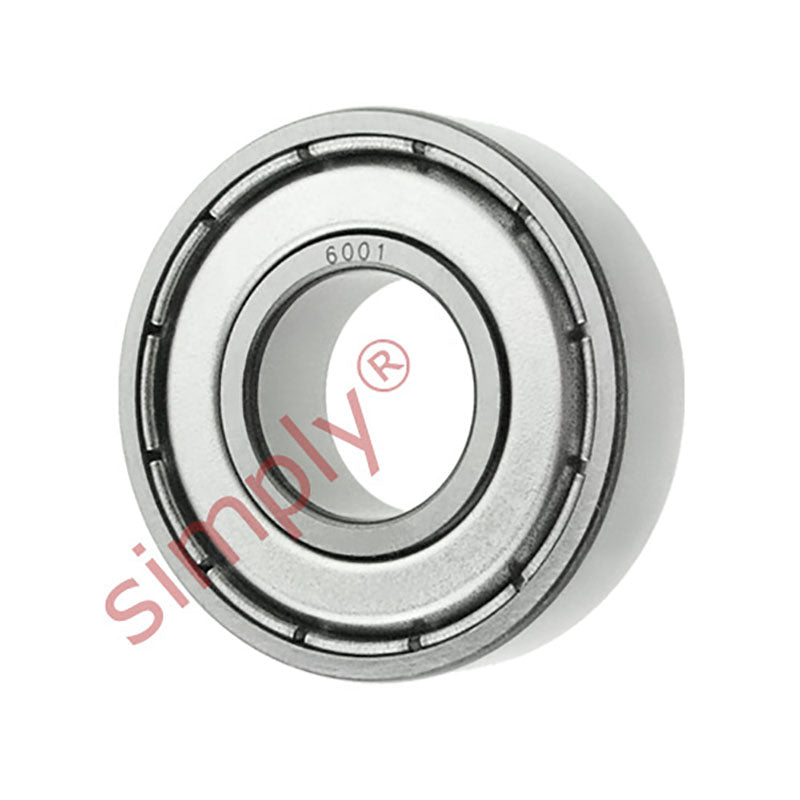

6001ZZ Budget Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Equivalent to: 6001ZZ 60012Z 6001ZZ 60012ZR 6001ZZE 6001FF 6001DD 6001DDC 6001KDDC EL122Z EL12ZZ 9101KDD 9101FF 101KSFF 773L01 6101PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| r min | 0.3mm |
| Dynamic load Cr | 5.1 kN |
| Static load Cor | 2.4 kN |
| Speed in grease | 27000 rpm |
| Speed in oil | 32000 rpm |
