SKU: 6001-2Z-KOY

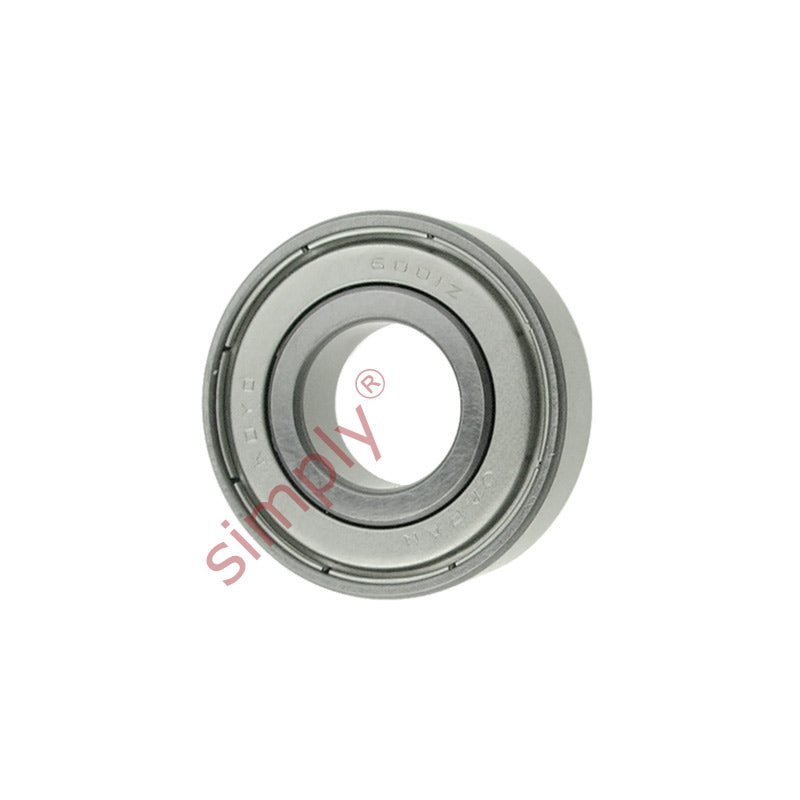

KOYO 60012Z Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Equivalent to: 6001ZZE 60012Z 6001.2Z 6001KDD 6001DD 60012ZR 6001FF 6001Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Width B | 8mm |
| Min radius r | 0.3mm |
| Dynamic load | 5.1 kN |
| Static load | 2.4 kN |
| Max speed in oil | 32000 rpm |
| Max speed in grease | 17000 rpm |
