SKU: 6001-ZZE-NACHI

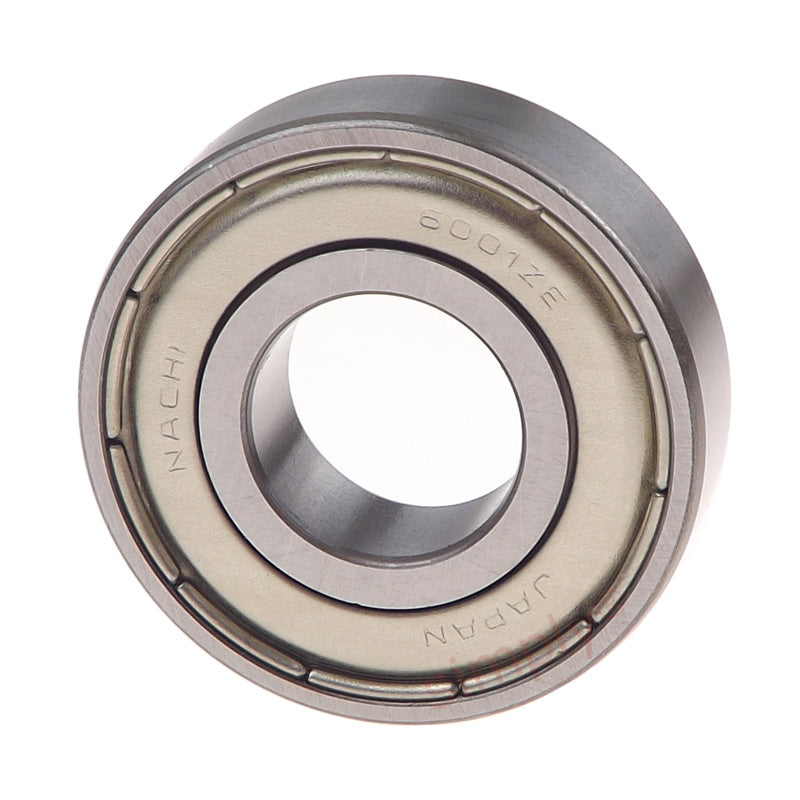

NACHI 6001ZZE Metal Shielded Deep Groove Ball Bearing 12x28x8mm
NACHI 6001ZZE Metal Shielded Deep Groove Ball Bearing 12x28x8mm
Regular price
$5.91
ex VAT
Regular price
Sale price
$5.91
ex VAT
Equivalent to: 6001ZZ 60012Z 6001.2Z 6001KDD 6001DD 60012ZR 6001FF
In stock
Price Break
5+
$3.96
9+
$3.74
19+
$3.69
29+
$3.65
49+
$3.60
74+
$3.56
99+
$3.34
199+
$3.29
249+
$3.25
499+
$3.20
999+
$3.11
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical

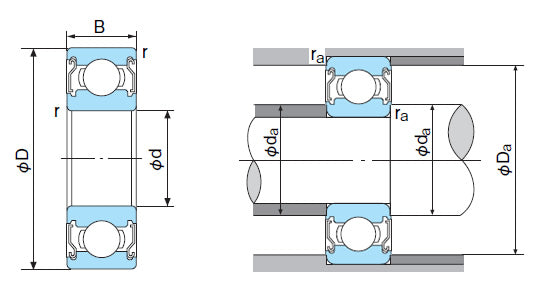

| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Width B | 8mm |
| Min radius r | 0.3mm |
| Dynamic load | 5100 kN |
| Static load | 2390 kN |
| Max speed | 28000 rpm |
| da min | 14mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 0.023 kg |
