SKU: 6001DDUC3-NSK
NSK 6001DDUC3 Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
NSK 6001DDUC3 Rubber Sealed Deep Groove Ball Bearing 12x28x8mm
Regular price
$5.47
ex VAT
Regular price
Sale price
$5.47
ex VAT
Equivalent to: 6001NSEC3 6001DUC3 6001RSC3 6001RSHC3 6001PC3 6001RSRC3 6001LUC3 60012NSEC3 60012RSC3 60012RS1C3 60012RSHC3 6001PPC3 60012RSRC3 6001LLUC3
In stock
Price Break
4+
$3.67
10+
$3.46
20+
$3.42
30+
$3.38
50+
$3.34
75+
$3.30
100+
$3.09
200+
$3.05
250+
$3.01
500+
$2.97
1000+
$2.88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical

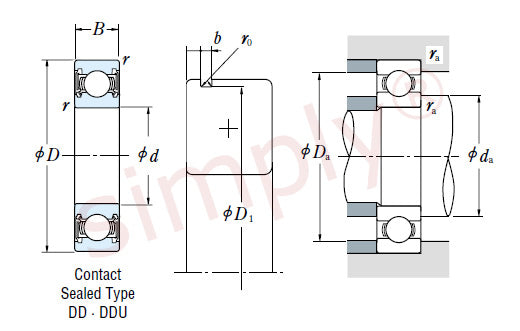

| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| r min | 0.3mm |
| Dynamic load Cr | 5100 N (520 kgf) |
| Static load Cor | 2370 N (241 kgf) |
| Factor | 13 |
| Speed in grease | 18000 rpm |
| Speed in oil | 32000 rpm |
| Weight | 0.022 kg |
