SKU: 6002-2NSE-NACHI

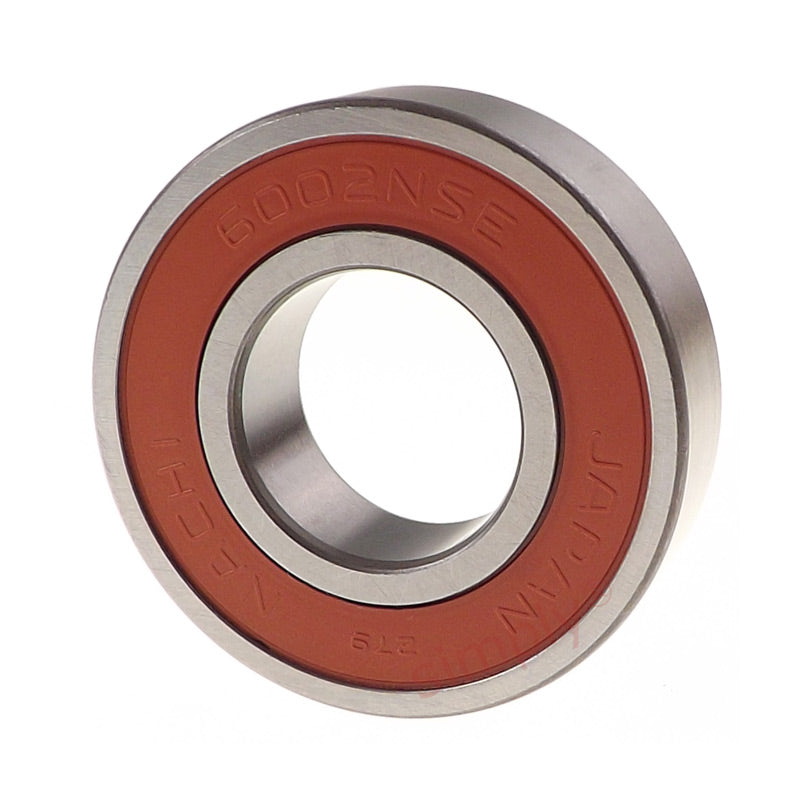

NACHI 60022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
NACHI 60022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
Regular price
$7.32
ex VAT
Regular price
Sale price
$7.32
ex VAT
Equivalent to: 6002NSE 6002DU 6002RS 6002RSH 6002P 6002RSR 6002LU 6002DDU 60022RS 60022RS1 60022RSH 6002PP 60022RSR 60022RSR
In stock
Price Break
5+
$4.91
9+
$4.63
19+
$4.57
29+
$4.52
49+
$4.46
74+
$4.41
99+
$4.13
199+
$4.08
249+
$4.02
499+
$3.97
999+
$3.86
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 32mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 5600 kN |
| Static load | 2840 kN |
| Max speed | 24000 rpm |
| da min | 17mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Weight | 0.032 kg |
