SKU: 6002-2Z-EU

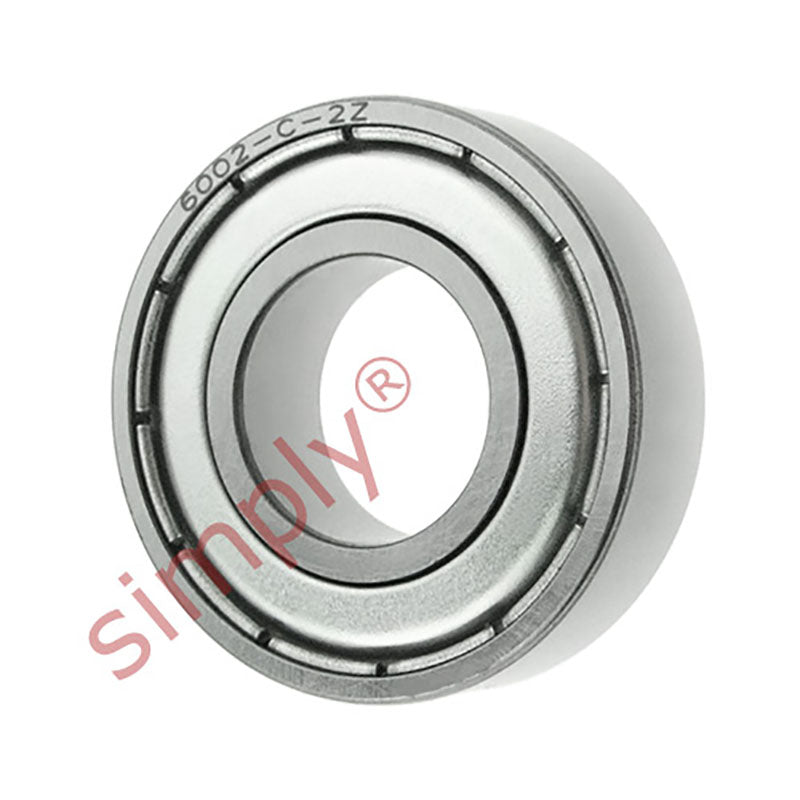

6002ZZ Budget Metal Shielded Deep Groove Ball Bearing 15x32x9mm
Equivalent to: 6002ZZ 60022Z 6002ZZ 60022ZR 6002ZZE 6002FF 6002DD 6002DDC 6002KDDC EL152Z EL15ZZ 9102KDD 9102FF 102KSFF 773L02 6102PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| r min | 0.3mm |
| Dynamic load Cr | 5.6 kN |
| Static load Cor | 2.85 kN |
| Speed in grease | 23000 rpm |
| Speed in oil | 27000 rpm |
