SKU: 6002-2ZTN9/C3LHT23-SKF

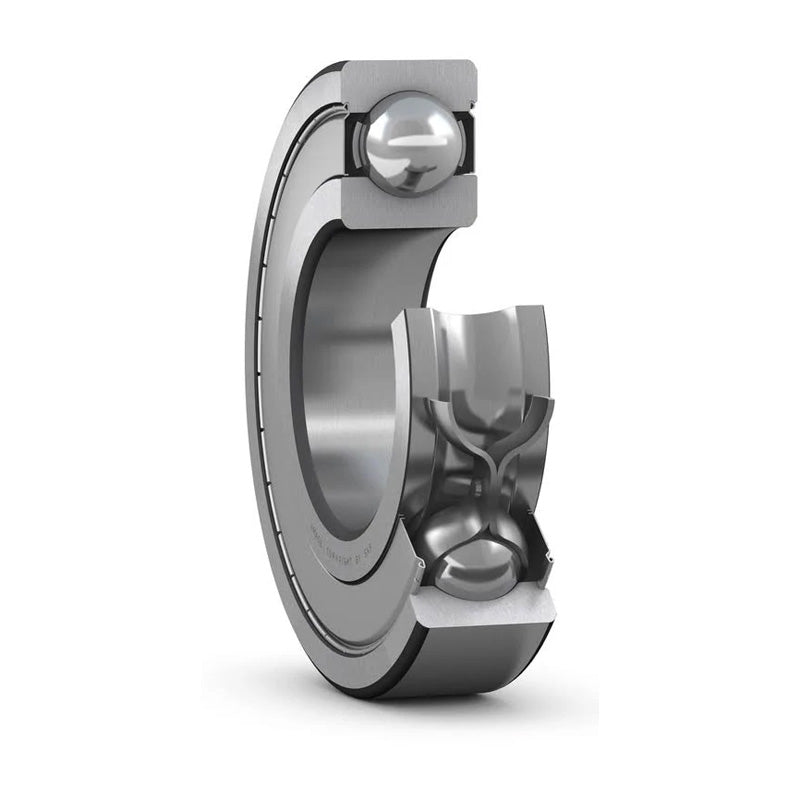

SKF 60022ZTN9C3LHT23 Metal Shielded Deep Groove Ball Bearing 15x32x9mm
Equivalent to: 6002ZZTN9C3LHT23 60022ZTN9C3LHT23 60022ZRTN9C3LHT23
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| Dynamic load C | 5.85 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.03 kg |
| d1 | 20.5mm |
| d2 | 0mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 0mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
