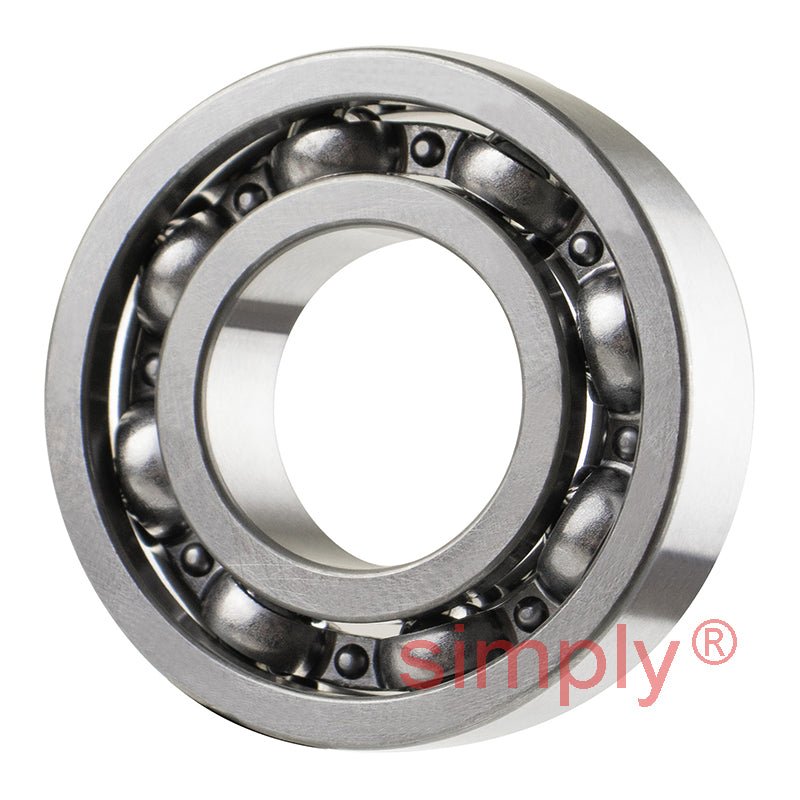

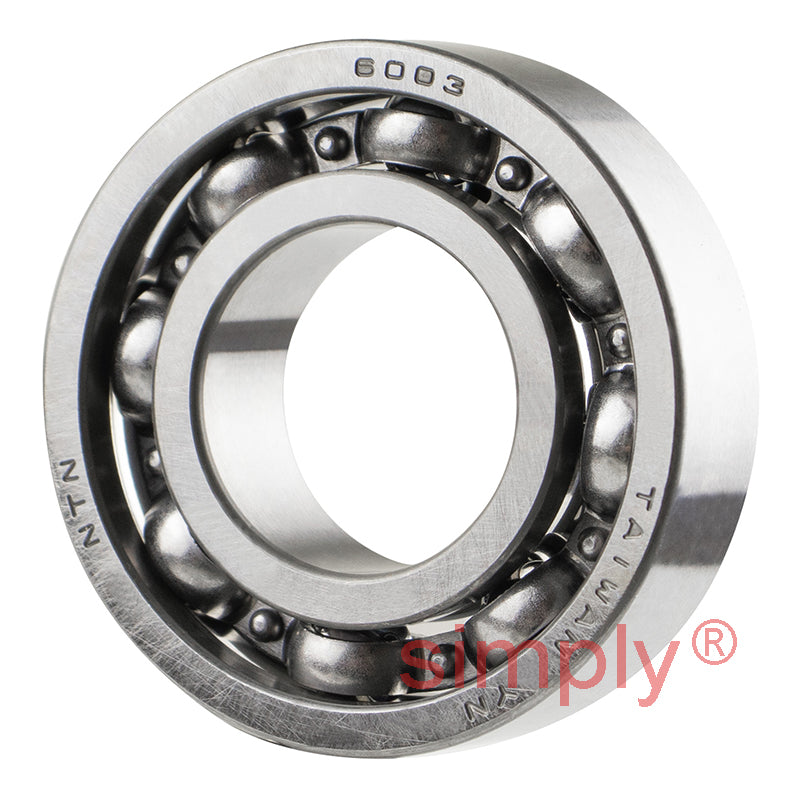

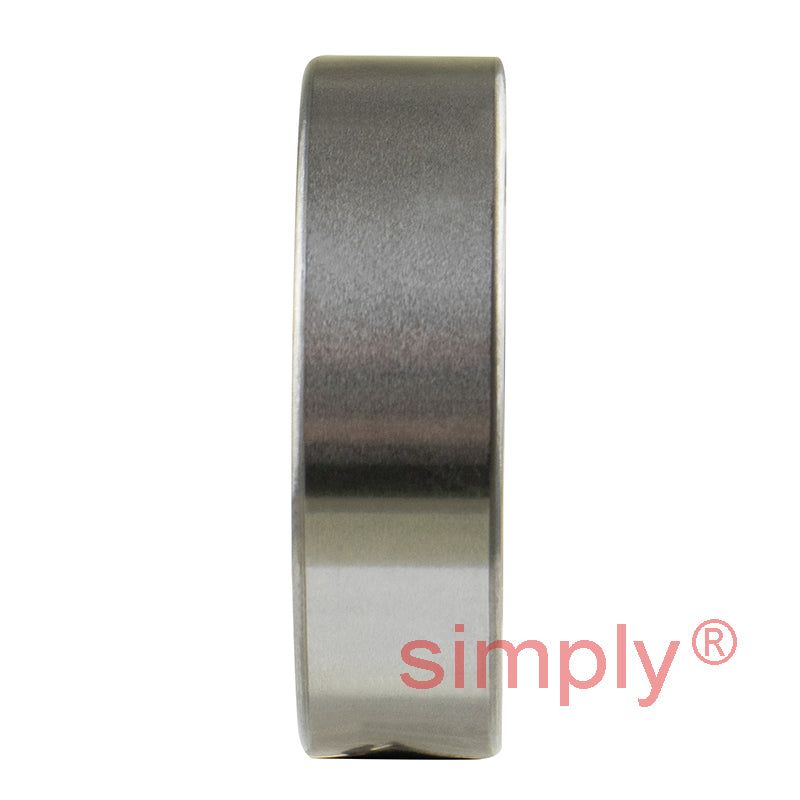

NTN 6003 Open Type Deep Groove Ball Bearing 17x35x10mm
NTN 6003 Open Type Deep Groove Ball Bearing 17x35x10mm
Regular price
$6.78
ex VAT
Regular price
Sale price
$6.78
ex VAT
Equivalent to: 6003CM 9103K 9103 103KS 6103 3L03 EL17 ELL17
In stock
Price Break
3+
$4.54
5+
$4.28
10+
$4.23
25+
$4.18
49+
$4.13
74+
$4.08
99+
$3.83
199+
$3.77
249+
$3.72
499+
$3.67
999+
$3.57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 35mm |
| B | 10mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.55 kN |
| C<sub>or</sub> | 3.35 kN |
| C<sub>u</sub> | 0.243 kN |
| f<sub>0</sub> | 13.6 kN |
| Grease | 20000 rpm |
| Oil | 24000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| D<sub>a</sub> Max. | 33mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.039 kg |
