SKU: 6004-2RSR-FAG

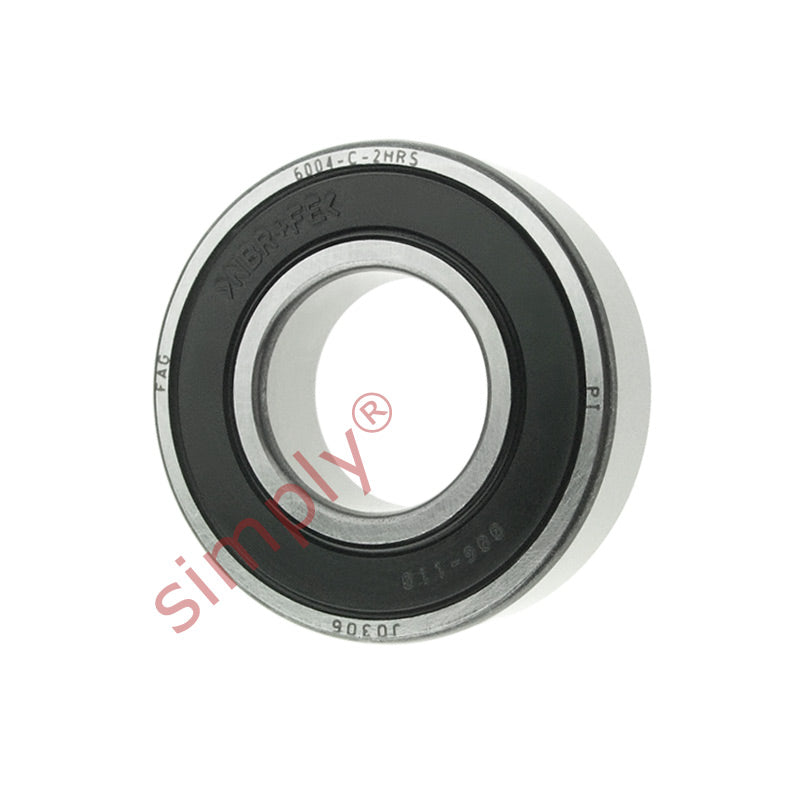

FAG 60042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x12mm
FAG 60042RSR Rubber Sealed Deep Groove Ball Bearing 20x42x12mm
Regular price
$9.51
ex VAT
Regular price
Sale price
$9.51
ex VAT
Equivalent to: 6004NSE 6004DU 6004RS 6004RSH 6004P 6004RSR 6004LU 60042NSE 6004DDU 60042RS 60042RS1 60042RSH 6004PP 6004LLU
In stock
Price Break
10+
$6.37
19+
$6.01
29+
$5.94
39+
$5.87
49+
$5.80
74+
$5.73
99+
$5.37
199+
$5.30
249+
$5.23
499+
$5.16
999+
$5.01
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| Dynamic load C | 9.95 kN |
| Static load Co | 5 kN |
| Fatigue load limit Pu | 0.212 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.069 kg |
| d2 | 24.9mm |
| D2 | 37.2mm |
| r1r2 min | 0.6mm |
| da min | 23.2 |
