SKU: 6004-2Z-C3-NKE

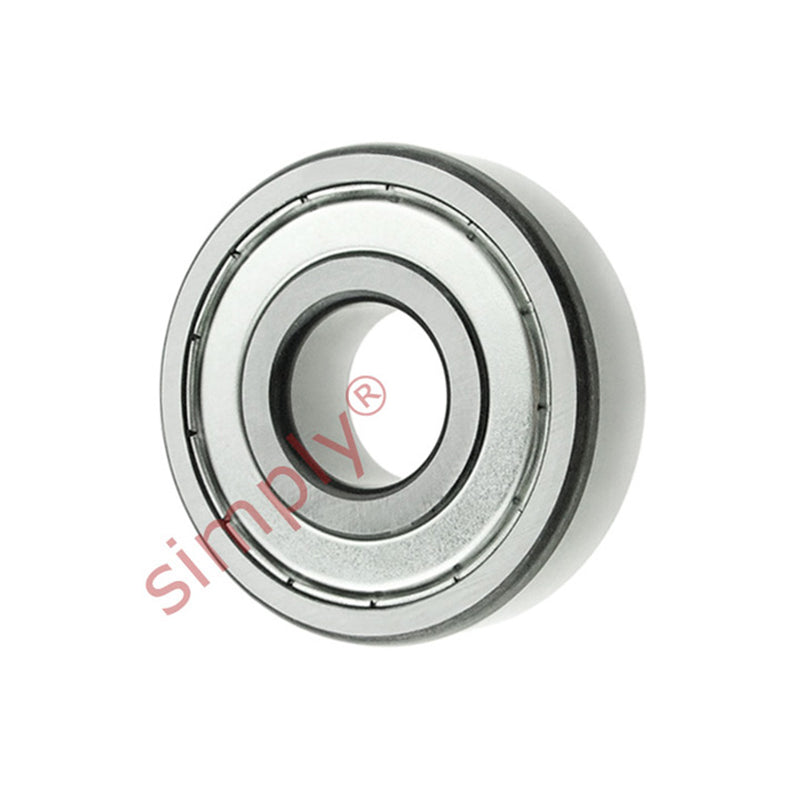

NKE 60042ZC3 Metal Shielded Deep Groove Ball Bearing 20x42x12mm
Equivalent to: 6004ZZEC3 6004ZZC3 6004.2ZC3 6004KDDC3 6004DDC3 60042ZRC3 6004FFC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| Dynamic load C | 9.95 kN |
| Static load Co | 5 kN |
| Fatigue load limit Pu | 0.212 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 19000 rpm |
| Weight | 0.069 kg |
| d1 | 27.2mm |
| D2 | 37.2mm |
| r1r2 min | 0.6mm |
| da min | 23.2mm |
| Da max | 38.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
