SKU: 6004NR-NSK

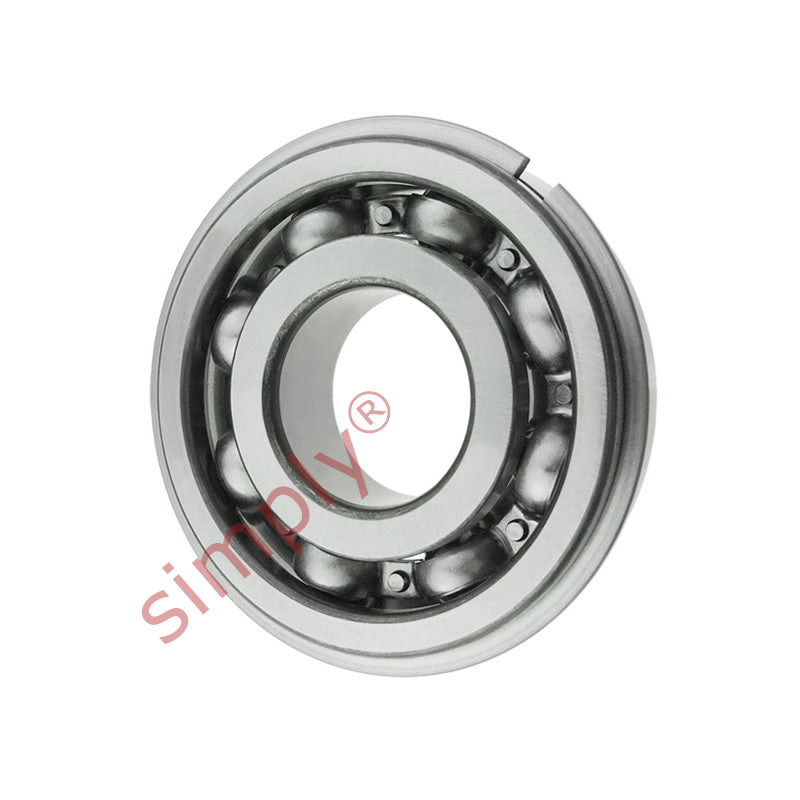

NSK 6004NR Open Type Deep Groove Ball Bearing With Snap Ring 20x42x12mm

Name: NSK 6004NR Open Type Deep Groove Ball Bearing With Snap Ring 20x42x12mm
Brand: NSK
SKU: 6004NR-NSK
Price: 21.47 USD
Availability: InStock

$21.47 ex VAT

Sale Sold out

In stock

Price Break

4+ $14.38

10+ $13.57

20+ $13.41

30+ $13.25

50+ $13.09

75+ $12.93

100+ $12.12

200+ $11.96

250+ $11.79

500+ $11.63

1000+ $11.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 42mm
Width:: 12mm
Seals / Shields:: None
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	20mm
D	42mm
B	12mm
r min	0.6mm
Dynamic load Cr	9400 N (955 kgf)
Static load Cor	5000 N (510 kgf)
Factor	13.8
Speed in grease	18000 rpm
Speed in oil	20000 rpm
a max	2.06mm
b min	1.35mm
D1 max	39.75mm
ro max	0.4mm
rN min	0.5mm
D2 max	46.3mm
f max	1.12mm
da2 min	24mm
da2max	25.5mm
Da2max	38mm
ra max	0.6mm
Dx min	47mm
Cy max	2.9mm
Weight	0.068 kg
