SKU: 6005-2Z-EU

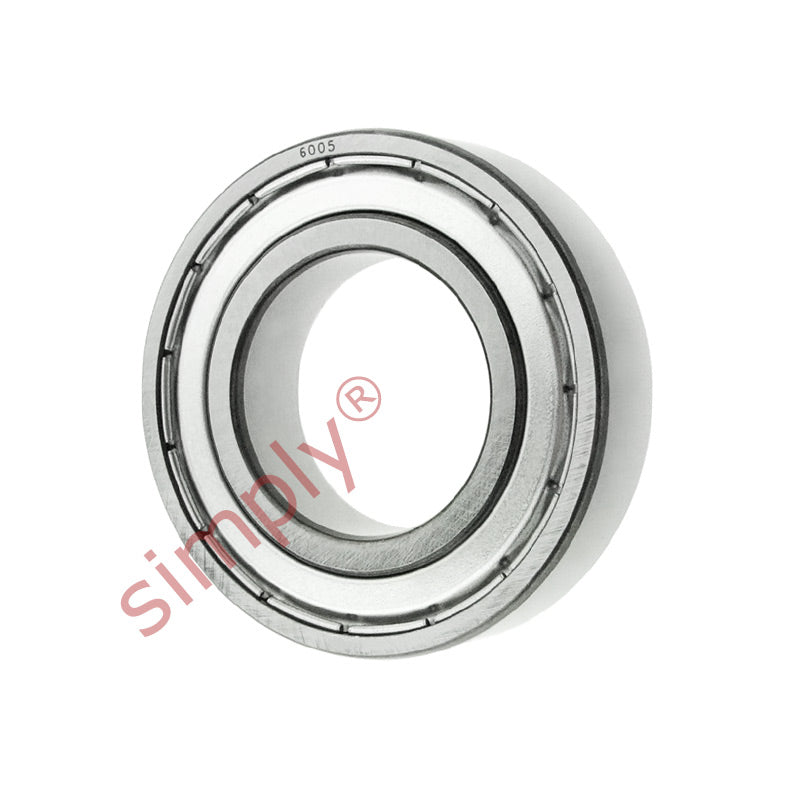

6005ZZ Budget Metal Shielded Deep Groove Ball Bearing 25x47x12mm
Equivalent to: 6005ZZ 60052Z 6005ZZ 60052ZR 6005ZZE 6005FF 6005DD 6005DDC 6005KDDC EL252Z EL25ZZ 9105KDD 9105FF 105KSFF 773L05 6105PP
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 10.1 kN |
| Static load Cor | 5.85 kN |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
