SKU: 6005-ZZE-NACHI

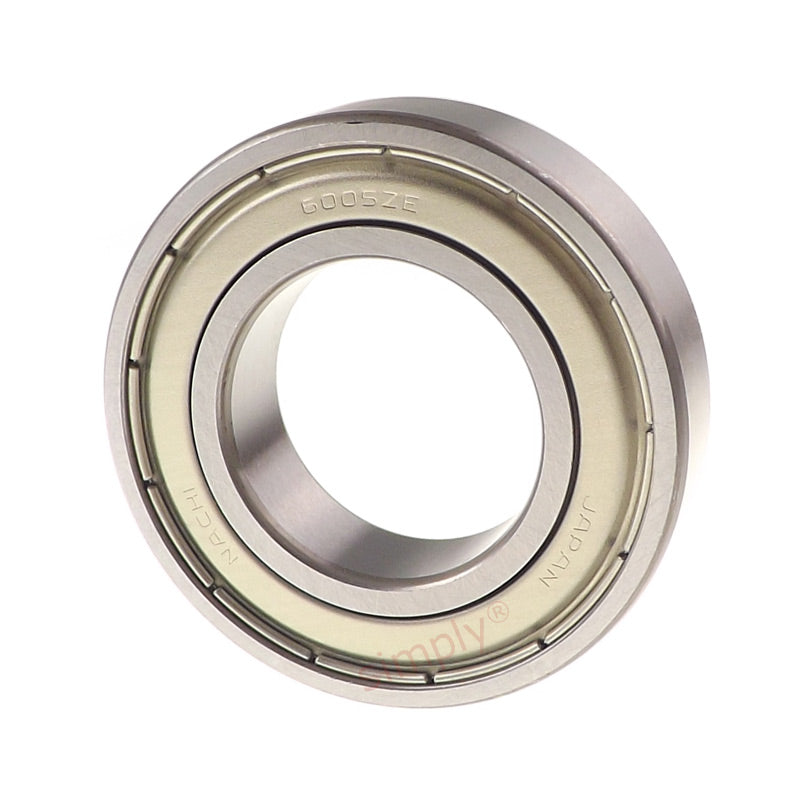

NACHI 6005ZZE Metal Shielded Deep Groove Ball Bearing 25x47x12mm
NACHI 6005ZZE Metal Shielded Deep Groove Ball Bearing 25x47x12mm
Regular price
$8.66
ex VAT
Regular price
Sale price
$8.66
ex VAT
Equivalent to: 6005ZZ 60052Z 6005.2Z 6005KDD 6005DD 60052ZR 6005FF
In stock
Price Break
5+
$5.80
9+
$5.47
19+
$5.41
29+
$5.34
49+
$5.28
74+
$5.21
99+
$4.89
199+
$4.82
249+
$4.76
499+
$4.69
999+
$4.56
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 25mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 10100 kN |
| Static load | 5850 kN |
| Max speed | 15000 rpm |
| da min | 29mm |
| Da max | 43mm |
| ra max | 0.6mm |
| Weight | 0.079 kg |
